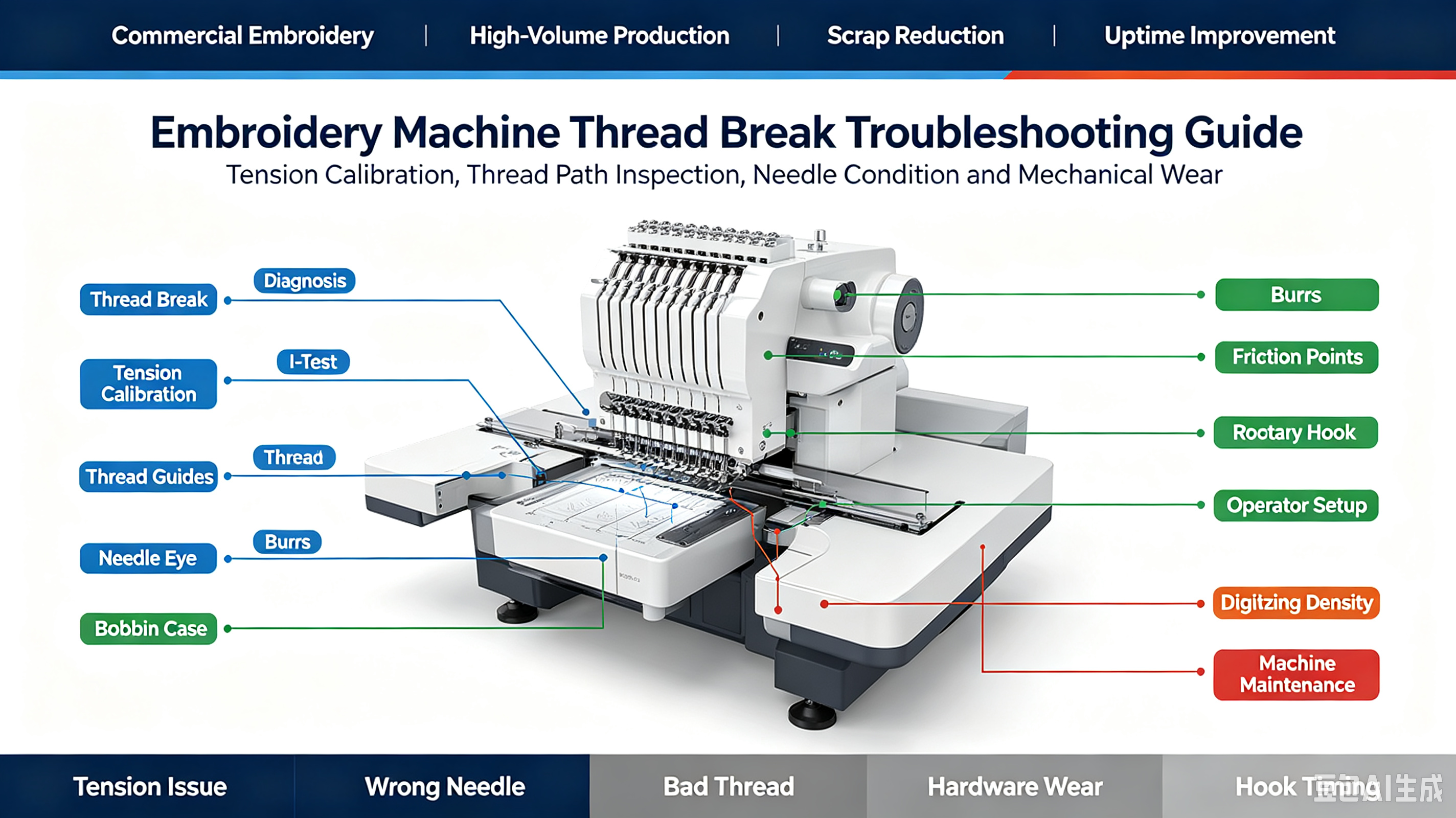

Frequent thread breaks cause immediate production bottlenecks, increase scrap rates, and destroy profit margins in commercial and high-volume embroidery operations. Thread breakage is not just a minor nuisance. It is a direct symptom of underlying systemic issues on the production floor. These issues range from poor consumable quality and simple operator error to failing hardware in aging equipment. Ignoring the root cause leads to ruined garments and missed delivery deadlines.
Resolving this requires a systematic diagnostic approach. You must isolate the variables causing the failure. This means systematically checking the thread, needles, digitizing files, hardware components, and operator setup. By implementing immediate fixes and evaluating mechanical wear, you can restore production efficiency. Ultimately, you must determine when chronic thread breaks indicate the need for new equipment rather than continuous, costly repairs.
Tension and Pathing are Primary Culprits: Over 70% of thread breaks stem from improper upper tension calibration, missed thread guides, or microscopic burrs along the machine's thread path.
Consumables and Setup Matter: Using degraded thread, incorrect needle types, or improper stabilizers forces mechanical stress and fabric "flagging" that leads to snapping.
Digitizing Impacts Hardware: Overly dense stitch files or improper underlay can cause needle deflection, leading to thread shredding and hook timing issues.
Downtime Dictates Upgrades: When troubleshooting yields diminishing returns, calculating the cost of operational downtime is the critical metric for deciding whether to repair or invest in modern embroidery machines with automated tensioning and advanced thread break sensors.
Table of Contents

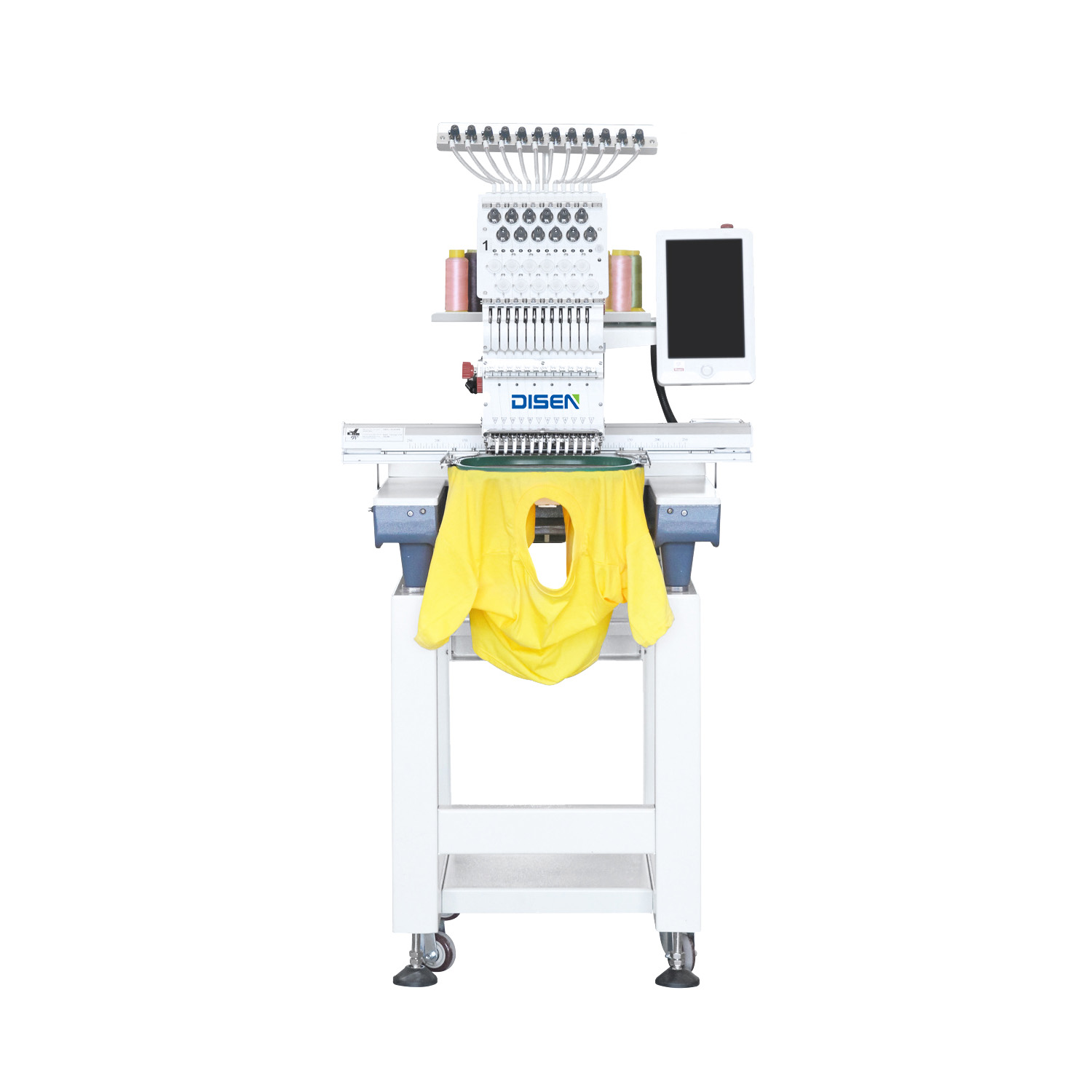

Proper thread tension is essential for stable stitches and consistent embroidery results. The upper thread and bobbin thread must maintain the right balance. Incorrect tension can cause thread breaks, uneven stitches, or visible bobbin thread on the fabric surface. Operators should adjust tension based on thread type, fabric material, and working conditions.
Environmental conditions such as humidity and temperature can also affect thread performance. High humidity may increase friction, while dry conditions can make threads more brittle. Regular tension checks using test stitches help identify imbalance and ensure smooth embroidery production.
Visual Symptom (Back of Fabric) | Probable Cause | Corrective Action |
|---|---|---|
100% Top Thread Visible | Bobbin too loose or Top too tight | Tighten bobbin case screw slightly; loosen upper tension knob. |
100% Bobbin Thread Visible | Bobbin too tight or Top too loose | Loosen bobbin case screw; tighten upper tension knob. |
Uneven Bobbin Width | Lint under bobbin tension spring | Remove bobbin spring, clean out lint with a business card, reassemble. |
Perfect 1/3 Ratio but Thread Snaps | Burr in thread path or bad needle | Inspect rotary hook for burrs; replace needle immediately. |
Incorrect threading is one of the most common causes of embroidery thread breaks. Missing a thread guide or incorrectly placing the thread in the tension system can change the tension balance and cause sudden breaks. Operators should carefully follow the correct threading path after every spool change. Machine speed should also match the thread type and design requirements. Standard polyester threads can run at higher speeds, while metallic and specialty threads require slower speeds to reduce friction and breakage.
The needle size must match the fabric thickness and thread type. Using a needle that is too small for heavy materials can cause needle bending, skipped stitches, and thread damage. Select larger needles for thick fabrics such as canvas, caps, and leather to maintain stable stitching. Regular needle replacement is also important because worn needles can develop rough edges that damage the thread during high-speed embroidery.
Needle Size | Point Type | Ideal Fabric Application | Recommended Thread |
|---|---|---|---|
65/9 | Ballpoint | Lightweight silks, performance wear | 60-weight polyester |
75/11 | Light Ballpoint | Standard cotton polos, t-shirts, fleece | 40-weight polyester or rayon |
75/11 | Sharp | Woven dress shirts, light canvas | 40-weight polyester |
80/12 or 90/14 | Sharp | Structured caps, heavy jackets, leather | 40-weight poly or Metallic thread |
Thread quality directly affects embroidery stability. Polyester thread is commonly used because it offers good strength and heat resistance, while rayon and metallic threads require more careful handling due to lower durability. Old or poorly stored thread can become brittle and break easily. Store threads away from sunlight and humidity changes, and regularly check for signs of damage such as fading, dust, or uneven winding.
Incorrect embroidery designs and unsuitable stabilizers can increase thread stress. Excessive stitch density creates more needle friction and may damage the thread, while poor stabilization can cause fabric movement during stitching. Use proper digitizing settings, suitable backing materials, and correct hoop tension to reduce thread breaks and improve stitch quality.
When thread tension and consumables are normal, mechanical wear may be the cause of thread breaks. Check thread guides, tension disks, take-up levers, and the rotary hook for wear, scratches, or lint buildup. Damaged parts can increase friction, damage the thread, and cause frequent breaks. Regular inspection and timely replacement of worn components help maintain stable embroidery quality.
Adhesive from spray products and sticky stabilizers can accumulate on needles and thread paths, increasing friction and causing thread damage. Regular cleaning and reducing the use of adhesive materials can prevent buildup. Using suitable stabilizers or clamping methods can also improve thread stability during embroidery.
The rotary hook must work precisely with the needle movement to form correct stitches. Incorrect hook timing or improper clearance can cause missed stitches, thread damage, and frequent breaks. Regular adjustment and inspection of the hook system ensure reliable stitching performance.
Regular maintenance is essential for preventing thread break problems. Operators should clean lint, inspect thread paths, lubricate key components, and check wear parts according to a fixed schedule. Proper maintenance improves machine stability and extends equipment life.
Maintenance Frequency | Required Action | Target Component |
|---|---|---|
Daily | Apply one drop of sewing machine oil. | Rotary hook race. |
Daily | Brush out accumulated lint and dust. | Bobbin case and under needle plate. |
Weekly | Blow out deep lint with compressed air. Wipe needles with alcohol. | Entire thread path, tension disks, and needle bars. |
Monthly | Check belt tension and grease cam rollers. | X/Y pantograph belts and color change cams. |
Quarterly | Professional servicing, timing check, and bearing inspection. | Main motor, drive belts, and rotary hook assembly. |
Define clear success criteria for your maintenance program. After performing a deep clean and replacing needles, track the machine's performance. A healthy machine should achieve a specific reduction in errors, typically dropping below one thread break per 1,000 stitches. If breaks remain high after maintenance, hardware replacement is necessary.
Constantly repairing aging equipment drains profitability. You must calculate the true cost of operational downtime to make an informed decision. Use a simple framework to quantify lost revenue. Multiply the minutes lost per thread break by the number of breaks per day. Multiply that total by your shop's hourly labor rate. Add the wholesale cost of ruined garments that must be scrapped.
For example, if an operator spends 45 minutes a day rethreading a problematic multi-head machine, that equals nearly four hours of lost production a week. When one head stops due to a thread break, all heads stop. Compare the cumulative monthly cost of this chronic downtime, wasted inventory, and replacement parts against the monthly financing cost of new equipment. Often, the lost revenue far exceeds the cost of acquiring modern machinery.
When evaluating new equipment, focus on advanced hardware solutions that directly eliminate thread breaks. Look for active or auto-tensioning systems. These systems use digital sensors to adjust thread tension on a per-stitch basis. They account for fabric thickness and stitch length automatically, eliminating manual operator guesswork and inconsistent tension knobs.
High-precision thread break sensors are another critical feature. Older mechanical sensors take several stitches to recognize a break, ruining the design and requiring the operator to back up the machine manually. Modern optical sensors detect a break instantly and stop the machine before a single stitch is missed. Additionally, analyze the physical design. Smaller cylindrical arms and improved rotary hook designs allow operators to handle complex garments, like heavy jackets or tight bags, without putting unnatural strain on the thread path. Investing in reliable Embroidery Machines with these features drastically reduces scrap rates.
Transitioning from single-head setups to multi-head production changes how you manage thread. A six-head machine requires six times the thread cones and exponentially increases the risk of a single break halting the entire production run. Scalability demands equipment built for high-volume stability.
Evaluate the trade-offs between high-speed operation and thread stability. While running at 1,200 SPM sounds efficient, it generates massive friction. Premium machines mitigate this high-speed friction through advanced thread path geometry, ceramic guides, and vibration-dampening chassis designs. This ensures the thread survives the journey from the cone to the fabric, even at maximum production speeds.
New equipment requires proper operator training to ensure stable production. Operators should understand the new threading process, automatic tension settings, and digital diagnostic functions. Instead of manually adjusting the machine like older models, they should learn how to use built-in systems to reduce thread breaks and improve stitch consistency.
Proper installation and a stable working environment are essential for embroidery machine performance. The machine must be installed on a level surface with reliable power supply to reduce vibration and electronic issues. Maintaining suitable temperature and humidity also helps keep thread flexibility stable and prevents unnecessary thread break problems.
Choosing a reliable supplier helps reduce long-term maintenance risks. Evaluate warranty coverage, spare parts availability, and technical support before purchasing new equipment. A strong service network ensures faster problem solving and minimizes production downtime when components such as tension systems or hook assemblies require replacement.
Conduct a comprehensive audit of your current thread breaks over a 48-hour period to identify specific problem heads or needles.
Inspect all rotary hooks and bobbin cases for burrs, replacing any components showing visible wear.
Standardize your needle replacement schedule to ensure no needle runs past 10 million stitches.
Audit your thread inventory and discard any cones that fail a basic manual snap test.
Schedule a physical demo with a vendor to evaluate how automated tensioning integrates into your workflow.
A: Improper upper thread tension, missed thread guides during setup, and microscopic burrs in the thread path or needle eye are the primary culprits. These issues create excessive friction that snaps the thread under high-speed operation. Always verify the thread path first before adjusting mechanical settings.
A: Metallic thread features a rigid inner core wrapped in foil, making it inflexible and prone to kinking. To prevent breaks, use a larger needle eye like an 80/12 or 90/14. Loosen the top tension and significantly reduce machine speeds to 600 SPM or lower to minimize friction heat.
A: Replace needles every 8 to 10 million stitches, or roughly every 8 hours of continuous running. You must also replace the needle immediately after any physical needle strike against the hoop or rotary hook, as this creates microscopic burrs in the eye that shred thread.
A: Yes. Over time, thread loses moisture and tensile strength, especially in low-humidity environments or under direct UV light. This degradation leads to brittleness. Brittle thread cannot survive the rapid push-pull cycle of the take-up lever and will snap easily under high-speed tension.
A: Fabric flagging occurs when inadequate stabilization or loose hooping allows the fabric to bounce up and down with the needle. This bouncing creates sudden slack in the thread. The slack forms a loop that catches on the needle tip or presser foot, snapping the thread instantly.
A: You will see visual signs of the thread fuzzing or shredding right above the needle eye before it completely snaps. To confirm, run a fingernail or a piece of pantyhose over the rotary hook and needle plate. If the material catches or snags, a burr is present.
