Degraded print quality directly impacts your bottom line. Ruined apparel blanks waste resources. Wasted consumables drain your profit margins. Most importantly, delivering subpar garments damages client trust. You might experience the frustration of a transfer looking incredibly vibrant on the PET film, only to appear dull, muted, or washed out after the heat press. This optical discrepancy often stems from viewing wet, cured ink on a glossy, light-reflecting surface versus the final matte finish pressed into light-absorbing fabric fibers.
However, when a print loses its true saturation, you are dealing with a mechanical or chemical failure. Diagnosing this requires a systematic approach. You must isolate variables across your entire production workflow. We will guide you through hardware diagnostics, including printheads and alignment. We will examine environmental factors like curing and pressing. Finally, we will evaluate consumable quality to help you permanently resolve DTF colors fading.
White Ink Dependency: Muted colors on dark garments are most frequently caused by an insufficient or misaligned white ink underbase, not the CMYK inks themselves.
Hardware Calibration is Non-Negotiable: Routine nozzle checks, vertical printhead alignments, and head carrier balancing are mandatory baseline requirements for color accuracy.
Thermal Shock and Curing: Incorrect curing temperatures or improper heat press pressure directly degrade ink adhesion, leading to immediate post-press dullness or rapid post-wash fading.
Consumable Compatibility: Mixing low-tier PET films, incompatible powders, and uncertified inks creates chemical mismatches that prevent proper bonding and color retention.
Table of Contents
Achieving a flawless transfer requires precise chemical and mechanical interactions. You cannot rely on guesswork on the shop floor. Every layer of the transfer plays a specific role in maintaining color fidelity. If you do not understand how these layers interact, you will waste hours chasing the wrong variables.

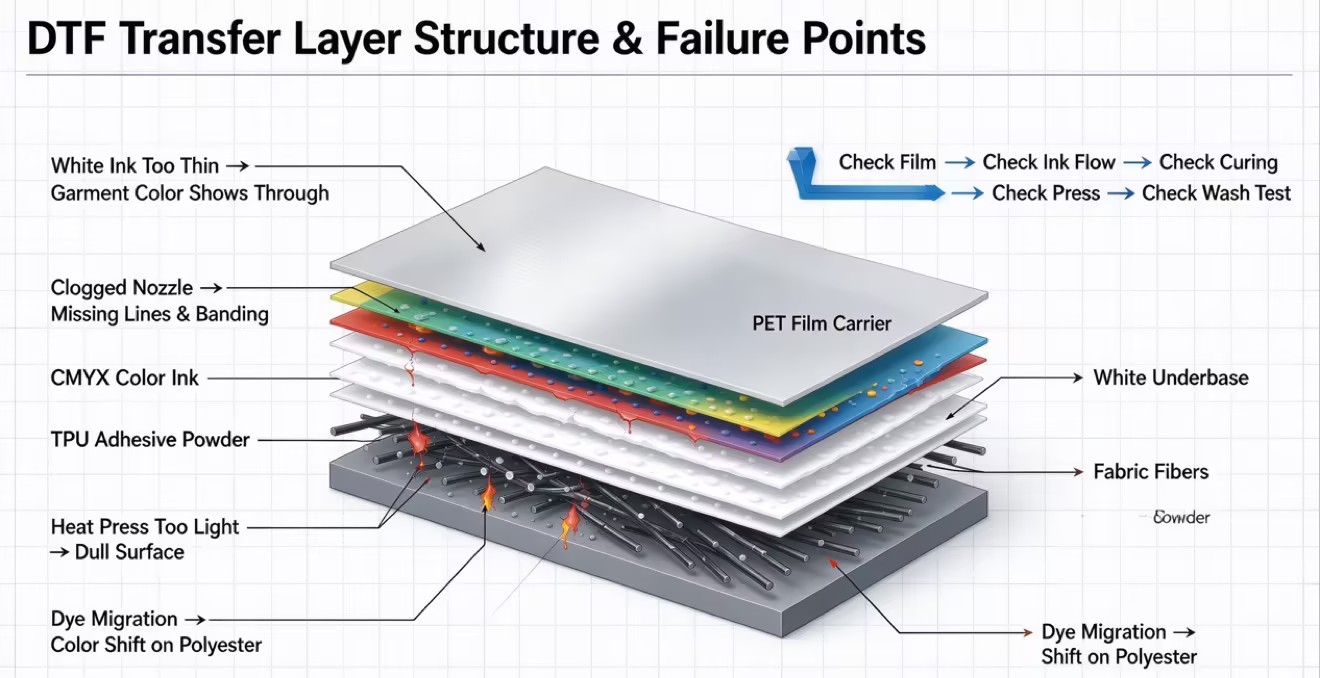

A successful transfer relies on a delicate, sequential chemical stack. You must build this stack correctly every single time you hit print. First, the CMYK pigment inks lay down the color data onto the PET film. Next, the white ink base layer prints directly over the CMYK layer. This white layer acts as a primer and an opacity booster. Finally, the adhesive TPU powder coats the wet white ink. When you apply heat, this powder melts, creating a mechanical bond between the ink stack and the fabric substrate. If any component in this stack fails, the colors will shift, fade, or wash out completely.
To visualize the process, consider the exact sequence of a perfect transfer build:
Ink Deposition: The printhead fires precise CMYK droplets onto the specialized release coating of the PET film.
Underbase Application: A dense layer of white ink covers the CMYK data, providing a solid background that blocks garment color.
Powder Coating: TPU adhesive powder clings exclusively to the wet ink, leaving the unprinted film bare.
Thermal Curing: Heat melts the powder into a uniform, flexible adhesive layer without scorching the underlying pigments.
Mechanical Pressing: High pressure forces the melted adhesive deep into the fabric fibers, locking the pigments in place.
You need objective metrics to evaluate your prints. A successful transfer must meet specific criteria before it leaves your shop. We use these baseline metrics to define true color fidelity. Do not accept a print that fails any of these checks.
Metric | Success Criteria | Failure Indicator |
|---|---|---|
Opacity on Dark Garments | Zero garment color bleeds through the design. | Muted or muddy colors; visible fabric texture through the ink. |
Edge Sharpness | Crisp, defined borders around all design elements. | Fuzzy edges, color halos, or visible white ink peeking out. |
Stretch Resistance | Ink stretches with the fabric and rebounds without cracking. | Micro-cracks appear, exposing fabric fibers and reducing color density. |
Washfastness | Maintains saturation for up to 50 standard wash cycles. | Significant pigment loss or flaking after the first or second wash. |
To fix fading, you must identify exactly when the degradation occurs. Establish a strict troubleshooting framework. Does the image look dull on the film before curing? If so, you have an ink flow or RIP software issue. Does it lose vibrancy immediately after the heat press? This points to curing temperatures, press pressure, or dye migration. Does it look great initially but fade after one wash? You are dealing with poor adhesive powder bonding or incompatible consumables. Pinpointing the exact moment of failure narrows down the root cause instantly.
Many fading issues begin inside the printer. If your hardware is not calibrated, no amount of heat pressing will save the transfer. You must secure your baseline mechanical settings before you even look at your heat press or curing oven.
CMYK inks used in DTF printing are inherently translucent. They rely entirely on the white ink layer for opacity. Think of the white ink as a blank canvas. Without a solid, dense white base, the dark color of the garment bleeds through the CMYK pigments. This bleed-through creates a perceived fading effect. The colors are not actually fading; they are simply being overpowered by the fabric underneath. A robust white underbase is your primary defense against muted prints.
White ink contains heavy titanium dioxide pigments. These pigments naturally settle at the bottom of the ink tank over time. If you print with settled ink, the printer lays down a thin, watery, translucent base layer. You must utilize active white ink circulation systems. These systems keep the titanium dioxide suspended. If your printer lacks automated circulation, you must manually agitate the tanks daily. Failure to maintain pigment suspension guarantees dull transfers on dark garments. You will notice this immediately when your white text looks grey or transparent on a black shirt.
Your RIP software controls how ink is deployed. Improper choke settings cause the white ink to misalign, creating a white halo around your design. Typically, a choke setting of 2 to 3 pixels pulls the white ink back just enough to hide it behind the CMYK edges. More importantly, restrictive CMYK ink limits artificially mute colors before they even print. If the software restricts the volume of pigment hitting the film, the resulting image will lack saturation. Additionally, incorrect color rendering intents can shift vibrant RGB designs into dull CMYK outputs. Always verify your RIP software profiles match your specific ink and film combination.
Printheads are the heart of your operation. Partial clogs in the CMYK or white channels severely degrade print quality. A clogged nozzle fails to deposit ink, leaving microscopic gaps in the design. These gaps manifest as missing lines, visible banding, and faded patches. You must perform daily nozzle checks. Learn to interpret the nozzle check pattern. A perfect grid indicates optimal health. Any broken lines require immediate intervention.
Follow this standard protocol to recover a clogged printhead:
Run a standard software cleaning cycle and print a new nozzle check.
If lines remain broken, run a heavy or deep cleaning cycle.
Inspect the capping station and wiper blade for dried ink buildup; clean them with specialized flushing solution.
Perform a wet cap by filling the capping station with cleaning fluid and letting the printhead soak for 30 minutes.
If the clog persists, use a syringe to gently push flushing solution directly through the affected ink channel.
Mechanical alignment is a strict requirement. Printheads must be perfectly aligned vertically. If the heads are misaligned, the CMYK ink drops will not land exactly where the software dictates. The ink scatters across the film. This scattering reduces overall color density and destroys edge sharpness. The resulting print looks fuzzy and washed out. Run the vertical alignment utility in your printer software regularly, especially after moving the machine or experiencing head strikes. You print an alignment chart, read the overlapping lines, and input the correct offset values into the software.
The head carrier moves rapidly back and forth across the film. If this carrier is unbalanced, it alters the trajectory of the ink drops. An unbalanced carrier causes micro-banding. Micro-banding introduces tiny, unprinted horizontal lines throughout the image. These microscopic gaps reduce the overall color saturation, making the print look faded from a distance. Ensure your carriage belt is properly tensioned. A loose belt causes the carrier to stutter, while an overtightened belt grinds the motor. Keep the guide rails clean and lubricated with light machine oil to ensure smooth, frictionless movement.
Even a perfectly printed film can be ruined during the finishing stages. Curing and pressing introduce extreme heat. You must control these thermal variables to protect your pigments. Guessing your temperatures will destroy your production run.
Curing transforms the TPU powder into a durable adhesive. This physical transformation requires precise heat. Undercuring leaves the adhesive granular and incomplete. Granular powder provides poor mechanical bonding, causing the ink to flake off in the wash. Conversely, overcuring scorches the ink pigments. Excessive heat literally burns the CMYK layer, leading to immediate, irreversible color degradation. You must calibrate your curing oven to melt the powder into a smooth, slightly textured orange-peel finish without boiling the ink. Use a digital pyrometer to verify the actual temperature inside your oven, as the digital display on cheaper units is often inaccurate.
Ambient shop conditions directly affect the curing process. High humidity introduces moisture into the PET film coating. When this moisture heats up in the curing oven, it turns to steam. The steam creates micro-blisters in the ink layer, disrupting the smooth surface and reducing vibrancy. Maintain a controlled environment. Keep your shop humidity between 40% and 60%. Store your PET films in sealed bags to prevent moisture absorption. If your film feels tacky or sticks together in the box, it has absorbed too much ambient moisture.
Different fabric types require specific heat press parameters. You cannot use a single setting for everything. Cotton typically requires higher temperatures and longer dwell times. Polyester requires lower temperatures to prevent scorching and dye migration. Blends fall somewhere in the middle. Always apply firm, even pressure. Inadequate pressure fails to drive the melted adhesive into the fabric fibers. If the ink sits on top of the fabric rather than bonding with it, the colors will look dull and wash out quickly.
Fabric Type | Temperature | Time (First Press) | Pressure | Peel Type |
|---|---|---|---|---|
100% Cotton | 310°F - 320°F | 15 seconds | Heavy (60-80 psi) | Cold or Warm (Check Film) |
50/50 Blends | 285°F - 300°F | 12 seconds | Medium-Heavy | Cold or Warm |
100% Polyester | 265°F - 275°F | 10 seconds | Medium | Cold Peel Recommended |
Tri-Blends / Rayon | 260°F - 270°F | 10 seconds | Medium | Cold Peel Recommended |
DTF transfer films are available in hot-peel, warm-peel, and cold-peel varieties. Peeling before the recommended temperature can cause incomplete transfers, stretching, or surface damage. Always follow the film manufacturer's instructions and allow cold-peel transfers to cool sufficiently before removing the PET backing.
A second heat press can improve DTF transfer adhesion, surface texture, and wash durability. Using parchment paper or a suitable finishing sheet helps create a more natural matte appearance. Follow the transfer supplier's recommended temperature, pressure, and pressing time to avoid overheating or damaging the design.
If DTF prints fade, crack, or peel after washing, common causes include incompatible consumables, poor adhesive bonding, dye migration, and improper heat pressing. Checking material quality, garment compatibility, and transfer settings helps identify problems and improve long-term print durability.
DTF ink, PET film, and TPU adhesive powder must work together to ensure reliable bonding and flexibility. Incompatible materials can cause cracking, peeling, or reduced wash resistance. Using manufacturer-approved or compatibility-tested consumables helps maintain consistent printing quality.
PET film coating quality affects ink release and transfer consistency. Uneven or poor-quality coatings may cause incomplete transfers, patchy graphics, and color loss. Selecting reliable transfer films with consistent release performance helps produce sharper designs and reduce printing defects.
Dye migration occurs when dyes from polyester garments transfer into the DTF print layer during or after heat pressing. This can discolor graphics, particularly white designs on dark or heavily dyed fabrics. Suitable pressing temperatures and dye-blocking materials help reduce this problem.
Anti-migration DTF materials help prevent polyester dyes from affecting printed colors. Low-temperature transfer systems and specialized dye-blocking adhesive powders can reduce discoloration. Always test the selected powder, ink, and fabric combination before production to ensure effective protection.
Fabric finishes, moisture, and surface residues can interfere with DTF adhesive bonding, potentially causing peeling or fading after washing. Proper garment preparation and compatible pressing settings improve adhesion. Conducting repeated wash tests on new fabrics or consumables helps identify cracking, edge lifting, and color loss before mass production.
Continuous fading issues signal a systemic problem. You must evaluate your current setup and decide when to upgrade your consumables, hardware, or operational procedures. Patching symptoms will not fix the root cause.
Audit your suppliers rigorously. Look for OEKO-TEX certification, which guarantees the inks are free from harmful substances and safe for apparel. Demand batch-to-batch consistency. You cannot afford color shifts every time you open a new bottle of ink. Prioritize inks with a high pigment load. High pigment density allows you to achieve vibrant colors without laying down excessive wet ink, which reduces pooling and bleeding on the film. A high pigment load also means you can run lower ink limits in your RIP software, saving money in the long run.
Cheap inks are a false economy. Low-tier inks contain more water and less pigment. To achieve acceptable saturation, you must push your RIP software ink limits higher. This excessive volume causes the ink to pool on the film, leading to curing failures and muddy edges. Premium inks achieve vibrant, solid colors at much lower ink limits. While the upfront bottle cost is higher, the yield per milliliter is vastly superior. You use less ink, cure faster, and eliminate fading complaints.
Printheads are consumable parts, but they should last for months or years with proper care. You must determine when a head is permanently degraded. If heavy flushing and prolonged soaking fail to recover missing nozzles, the head is dead. Continuing to print with unrecoverable nozzle loss guarantees faded, banded prints. Do not waste expensive ink trying to push through a ruined printhead. Replace it immediately to restore your baseline print quality. Track your printhead lifespan to anticipate replacement costs.
Converted desktop printers are notorious for high maintenance requirements and frequent fading issues. They lack the robust circulation and environmental controls needed for stable production. Evaluate your return on investment. If you spend hours daily unclogging heads and reprinting faded transfers, a hardware upgrade is justified. Purpose-built commercial systems feature integrated white ink agitation, automated cleaning cycles, and precise heating platens. These features eliminate the variables that cause colors to wash out, allowing you to focus on production rather than troubleshooting.
Degraded prints rarely result from a single point of failure. You must take control of your production environment. Stop guessing and start isolating variables systematically across your hardware, curing process, and consumable stack. By understanding the chemical interactions and mechanical requirements of your equipment, you can permanently eliminate washed-out transfers.
Take these immediate next steps to secure your print quality:
Audit your white ink flow and verify your circulation systems are actively suspending the titanium dioxide pigments.
Calibrate your heat press using a digital pyrometer to guarantee you hit the exact curing temperatures required for your TPU powder.
Standardize your shop on a single, certified consumable ecosystem to eliminate chemical mismatches between your ink, film, and powder.
Implement a strict daily maintenance routine that includes nozzle checks, capping station cleaning, and humidity monitoring.
A: Dullness immediately after pressing usually stems from inadequate pressure or incorrect temperature. Light pressure fails to drive the melted adhesive into the fabric fibers, leaving the ink sitting on top. Additionally, skipping the second press with a Teflon or parchment sheet leaves an unnatural sheen that looks washed out.
A: CMYK inks are translucent and rely completely on the white ink underbase for opacity. If the white layer is thin, watery, or misaligned, the dark garment color bleeds through the design. This bleed-through overpowers the CMYK pigments, making the colors appear muted and faded.
A: Yes. Removing a cold-peel film while it is still warm causes thermal shock. Peeling early stretches the un-set ink layer and creates microscopic fractures across the color surface. These fractures scatter light and give the print a distressed, faded appearance.
A: Post-wash fading indicates a failure in mechanical adhesion. Undercuring the TPU powder leaves it granular and weak, causing the ink to flake off. Mismatched consumables or residual factory chemicals on the garment can also block the adhesive bond, leading to rapid degradation in the laundry.
A: This happens due to dye migration, also known as sublimation bleeding. When polyester heats above 300°F, the fabric dyes turn into gas and migrate into the DTF ink layer. You prevent this by using low-temperature pressing techniques and specialized anti-sublimation black adhesive powder.
A: Misaligned printheads cause ink drops to scatter, reducing color density and edge sharpness. You fix this by running the vertical alignment utility in your RIP or printer control software. Print the alignment chart, read the values, and input the correct numbers to synchronize the printheads perfectly.
