DISEN

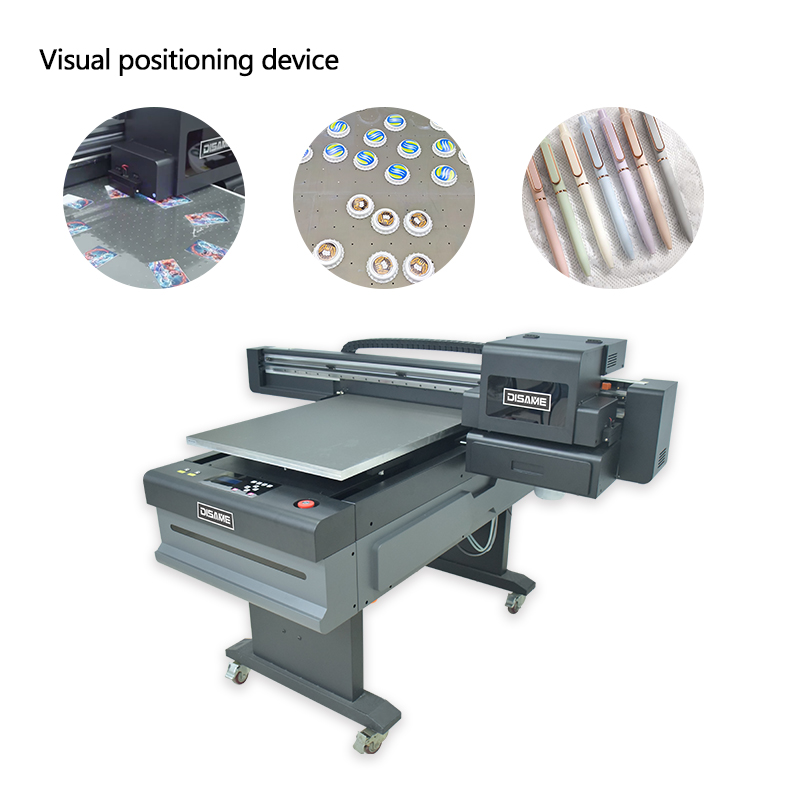

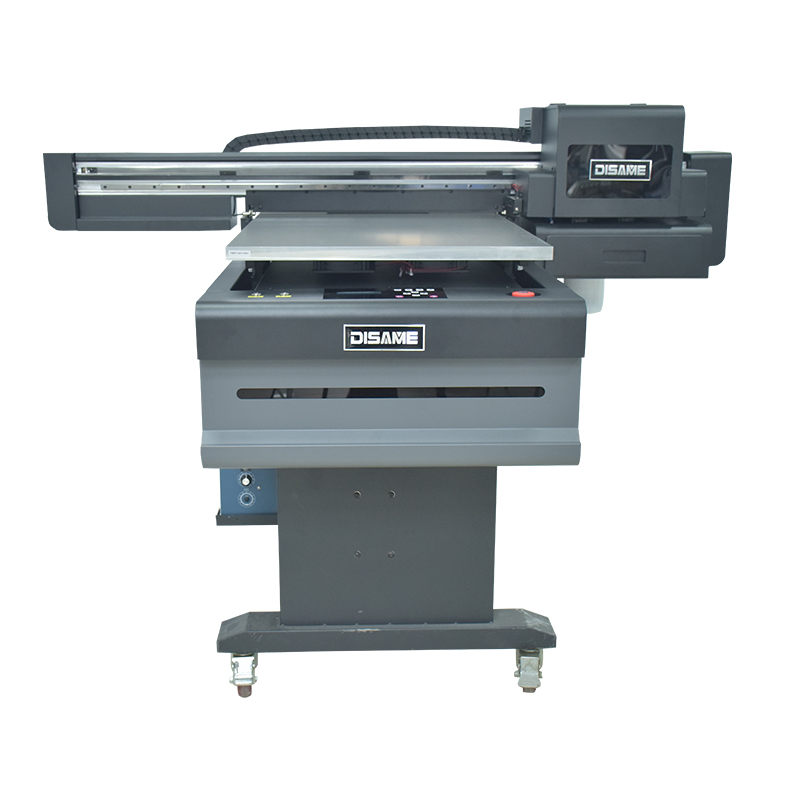

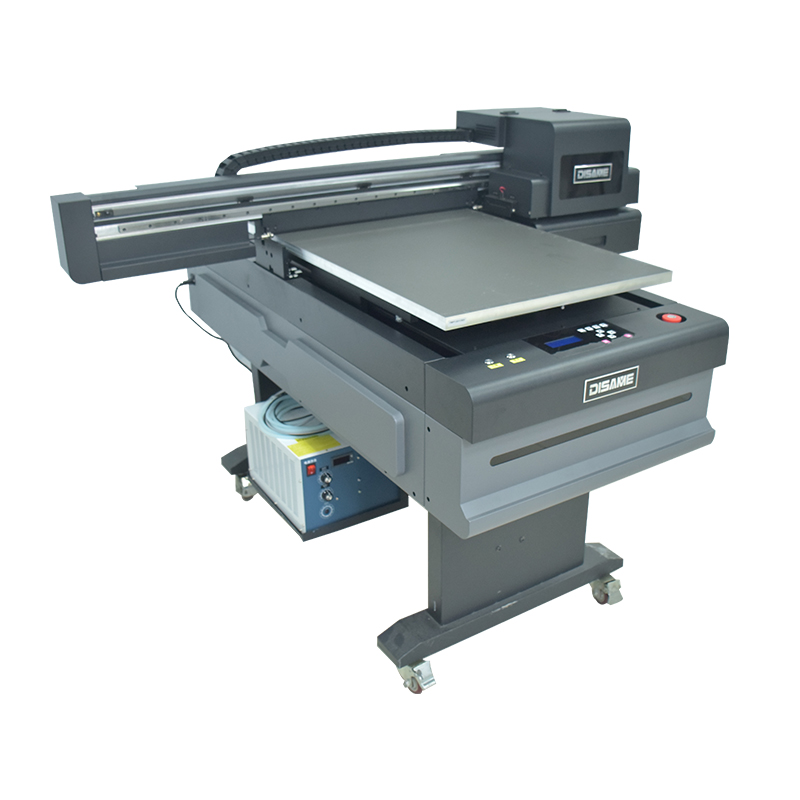

Multifunctional UV flatbed Printer, suitable for printing on various materials, including acrylic, glass, plastic and wood boards. Equipped with a visual positioning device, it eliminates the need for manual positioning, thereby enhancing the printing efficiency.

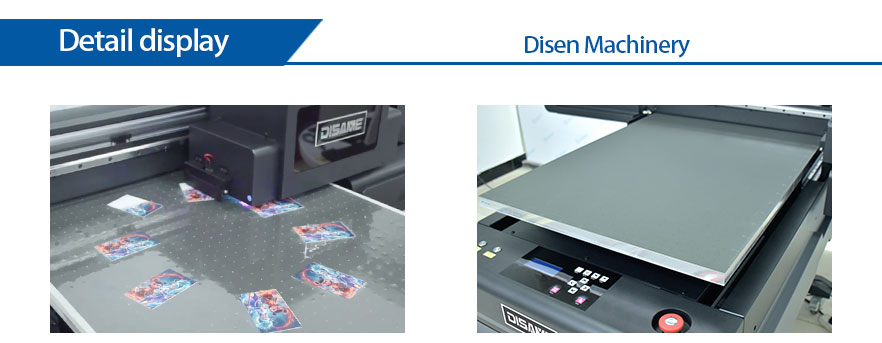

A1-sized printing platform, equipped with an adsorption device, which prevents the material from fraying during printing and provides better adhesion for the printing material. The printer has the function of continuous printing. Once it is paused, it can resume printing without wasting the consumables.

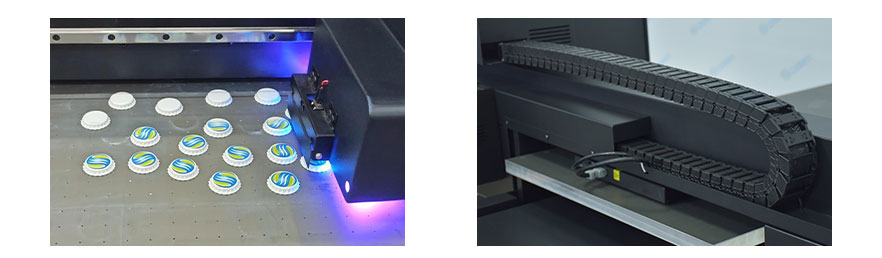

The automatic scanning device is mainly used to solve the problem of manual positioning. When printing small objects, they can be placed freely, and the camera will automatically identify the printing position. To provide more convenience for printing.

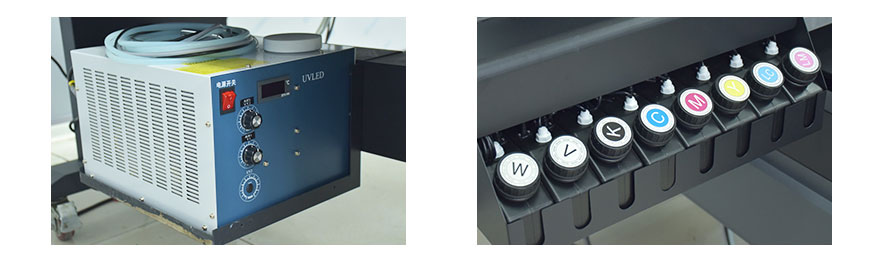

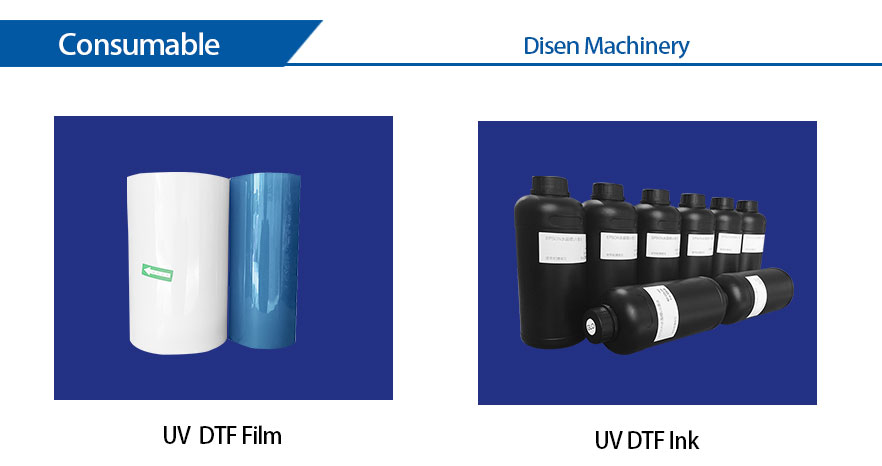

The machine is equipped with large-capacity ink cartridges and comes with inks such as CMYK LC LM, varnish and white ink. To provide a more vivid effect for printing work. Below is an UV LED curing lamp, which is used for cooling the UV lamp.

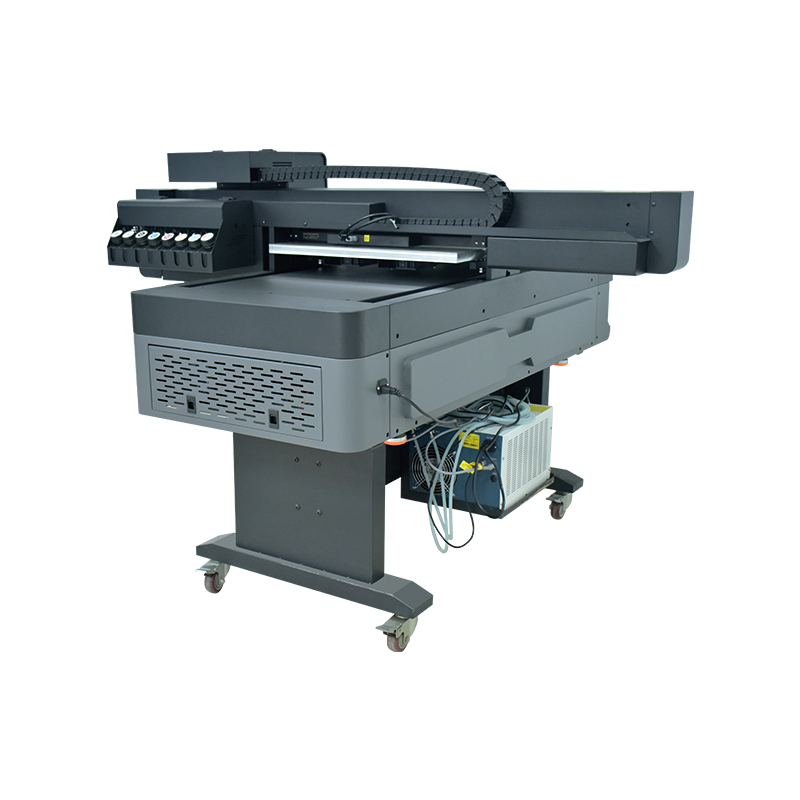

Product name | DS-6090 uv flatbed printer |
Print head type | EPSON XP600 |
Print head number | 3 |
Printing speed | 6PASS 4㎡/h 6PASS 12㎡/h 6PASS 8㎡/h 8PASS 3㎡/h 8PASS10㎡/h 8PASS6㎡/h 12PASS 2㎡/h 12PASS 7㎡/h 12PASS 4㎡/h |
Print media | Acrylic/metal/various signs/glass/plastic/stone, etc |
Print thickness | 0MM-140MM |
Ink type | UV ink |
Ink color | C M Y K LC LM W1 V1/ C M Y K W1 V1 |
Printer size | 600MM*900MM |
Supply voltage | 220V/110V 50/60HZ |
Power | 550W |
Print progress | 720X1440DPI |
Work environment | 15-30℃, temperature 20-30% |
RIP software | MAINTOP6.1 / PHOTOPRINT |
Document format | JPG/TIFF/PDF |
Transmission interface | Gigabit network interface |
Machine size | 1760MM*1550MM*620MM |
Wooden box size | 1830MM*1680MM*850MM |
Packed weight | 250KG (without tripod) Tripod 28.3KG |

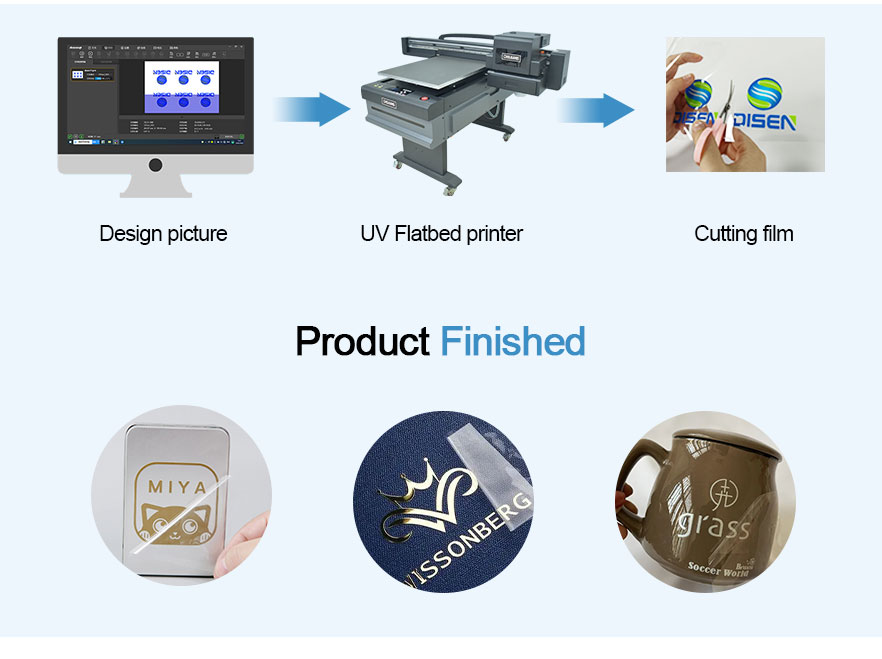

UV Flatbed printer, Use computer drawing, import into the printing software, print out the picture of the software through the data line, print on the crystal label film, and then transfer the pattern to the film through the laminating machine, at this time the crystal label sticker is completed. Can be attached to various items.

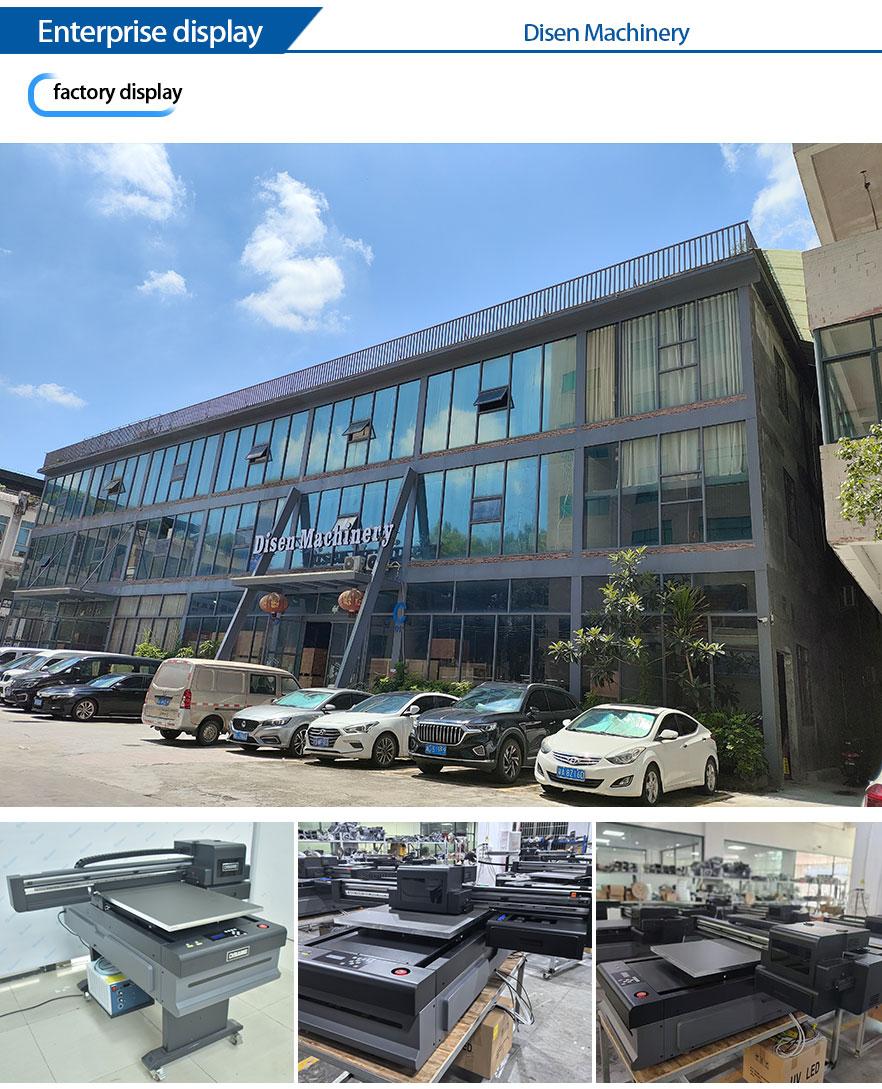

Disen Machinery is a specialized enterprise that integrates production and sales. We mainly focus on printing equipment and provide more services for industries such as gift production, advertising printing, product packaging, and cultural creation. For advertising printing, the equipment we produce includes DTF Printer, UV DTF Printer, UV Flatbed Printer, and Eco Solvent Printer. DESIN provides one-on-one after-sales service for customers purchasing our products.
Choosing the right printer depends on your work requirements and budget. If there are many orders and a large amount of printing work, it is necessary to choose an UV flatbed Printer with a faster speed and a wider printing platform. If the order quantity is relatively small, you can choose a smaller printing device. The common sizes we often encounter are A1, A3, 1325, 1613, 1016, and so on. We can also customize according to the customers' requirements.
Our 6090 UV flatbed printer supports printing on almost all materials, including acrylic, glass, metal, wood, MDF, leather, ceramic, stone, PVC, ABS, PET and various packaging substrates. It also perfectly works for UV DTF crystal transfer film, apparel 3D embossed labels, with no pre-coating required for most smooth surfaces.
Disen provides one-to-one after-sales service to customers who purchase products. Our products have a one-year warranty period, and we provide you with free repair services.
Online services: We provide customers with timely online services through WhatsApp, e-mail, WeChat, etc. Our products are installed and used with detailed videos, instructions, etc.
Offline service: Offline service includes face-to-face service and technician above service. You can come to our factory and we will arrange technicians to teach you. About the technician visit, you need to provide service fee, our technician will go to your country, continue to install, maintenance and other services.
