DS-UV DTF
DISEN

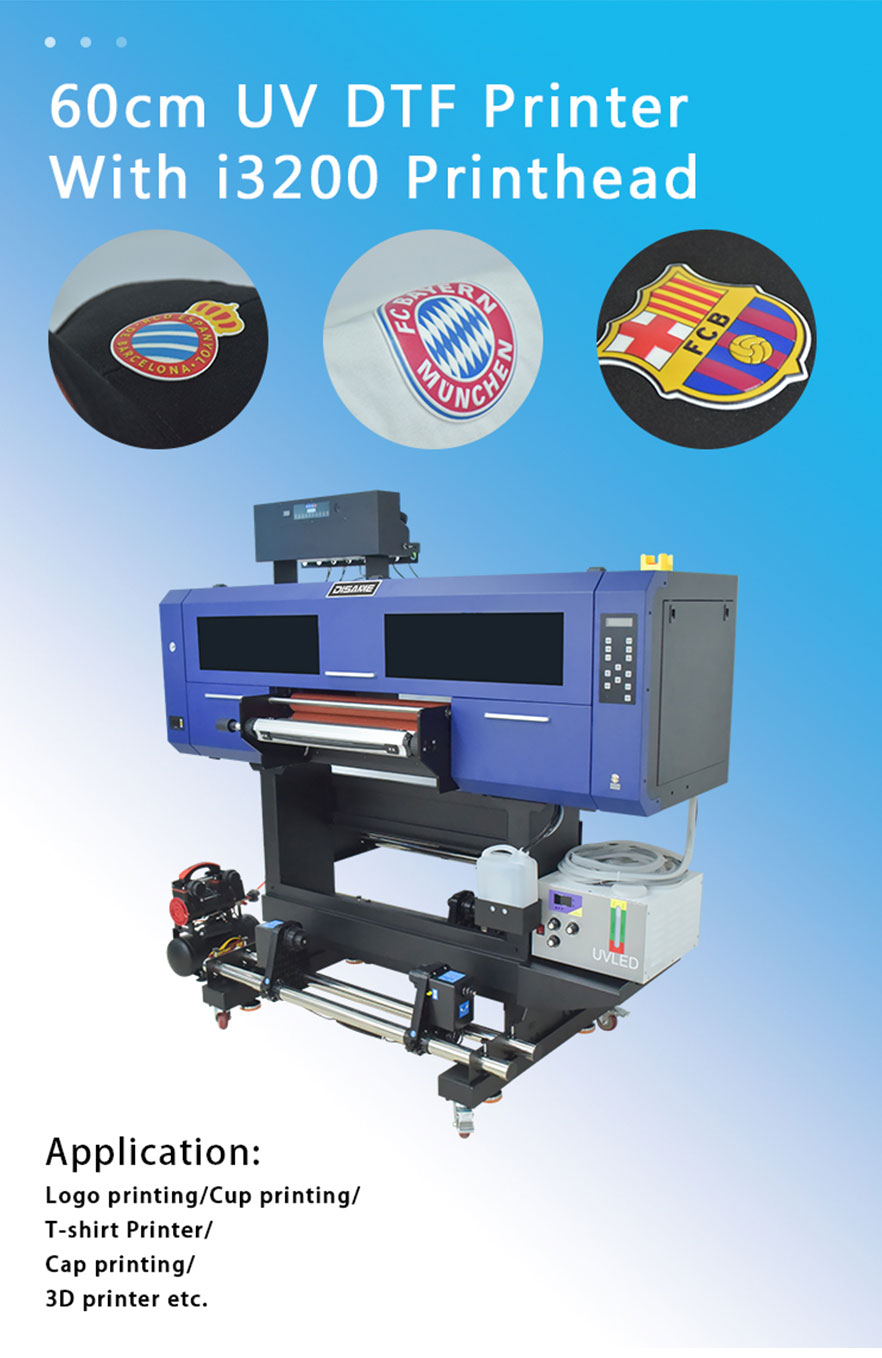

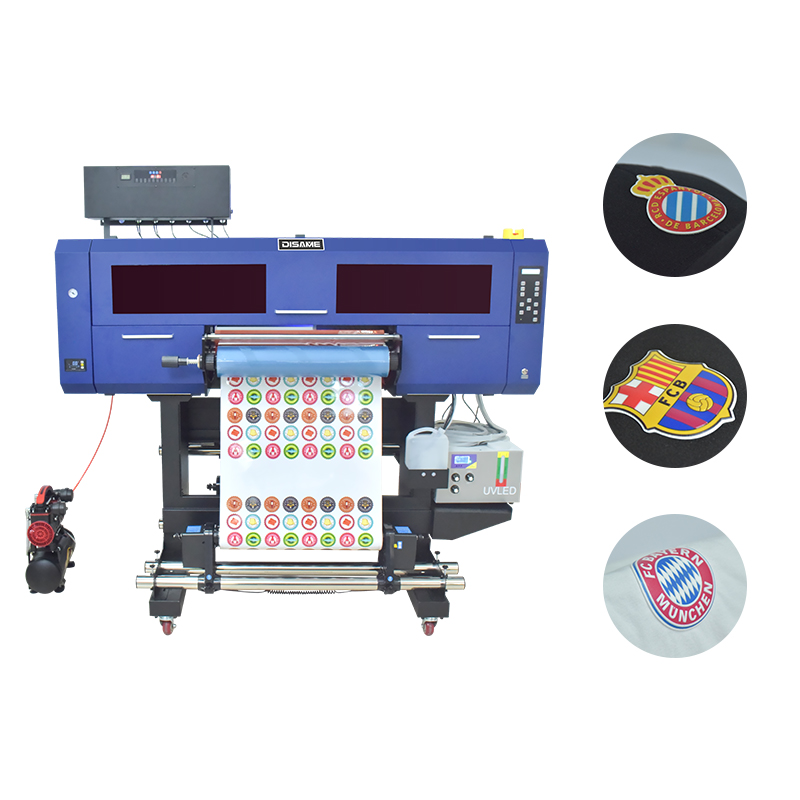

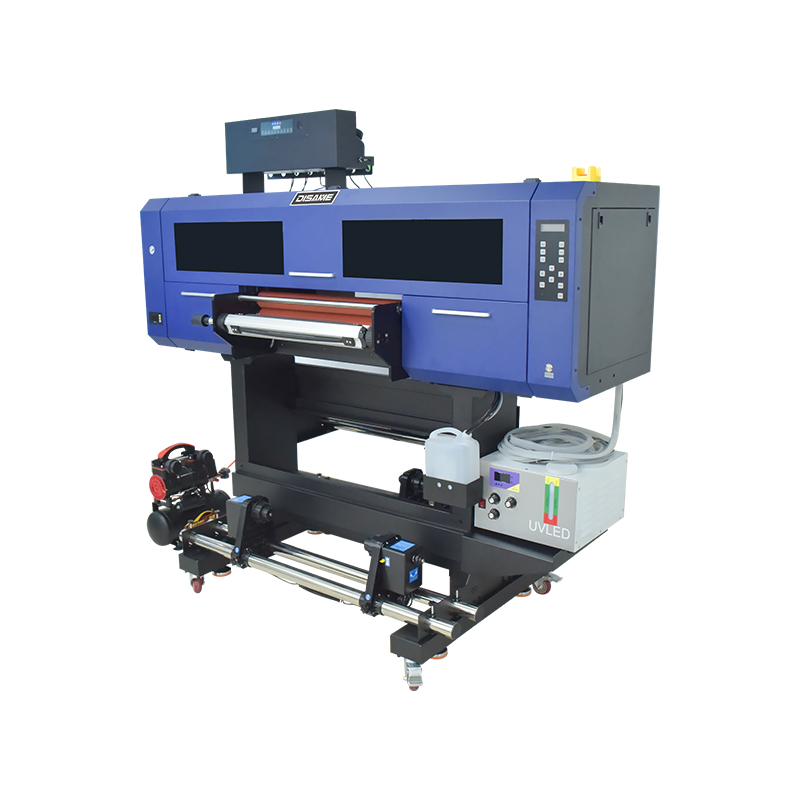

An integrated UV DTF printer with printing and laminating functions. The machine is widened and has a reinforced design, providing more stable assistance during printing. The machine is equipped with 3 to 4 printing heads, which enables it to accelerate the printing speed when printing three-dimensional labels.

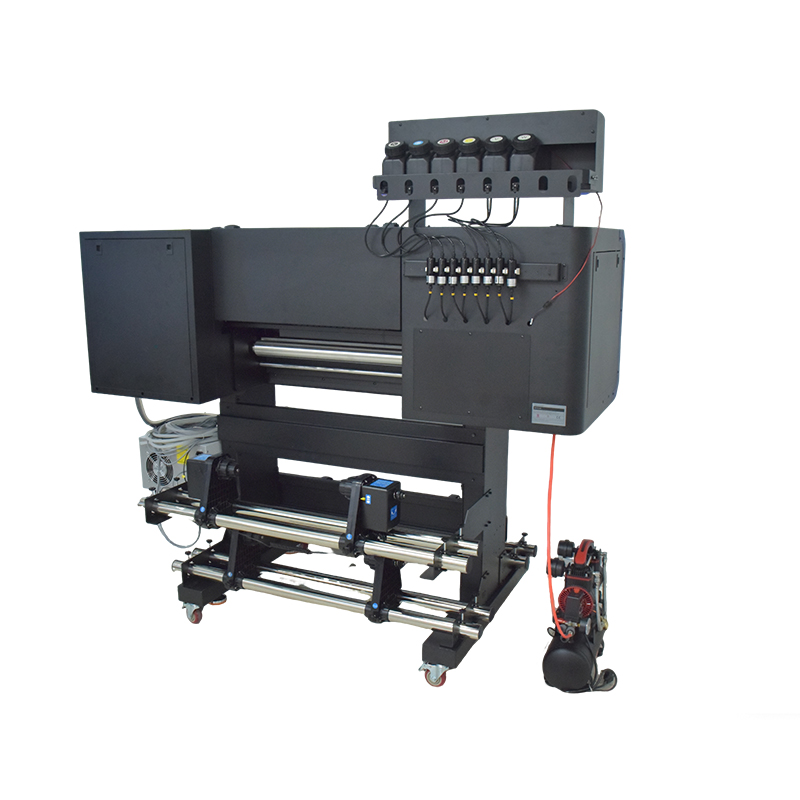

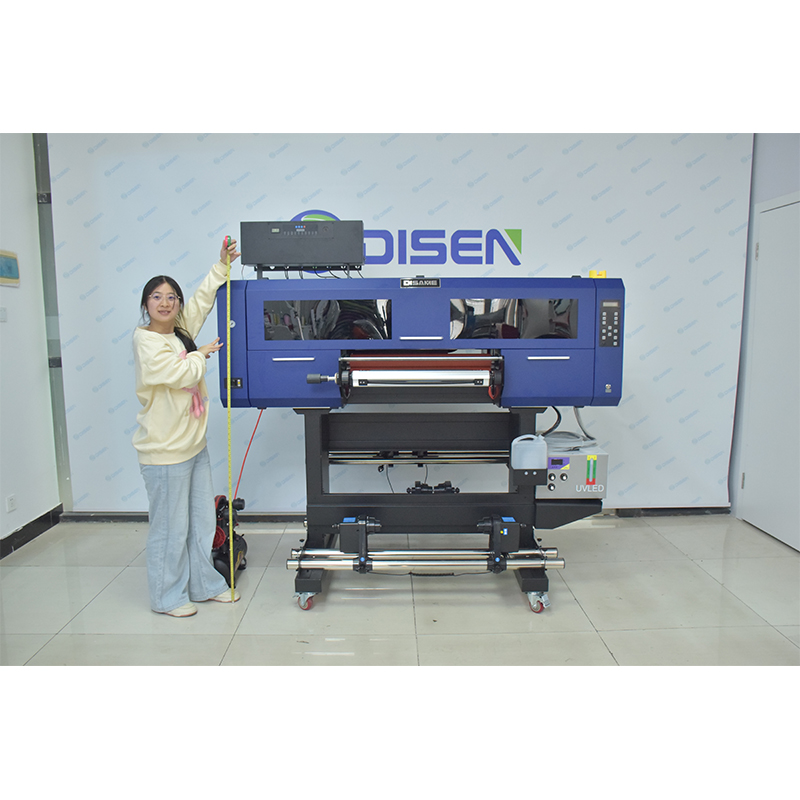

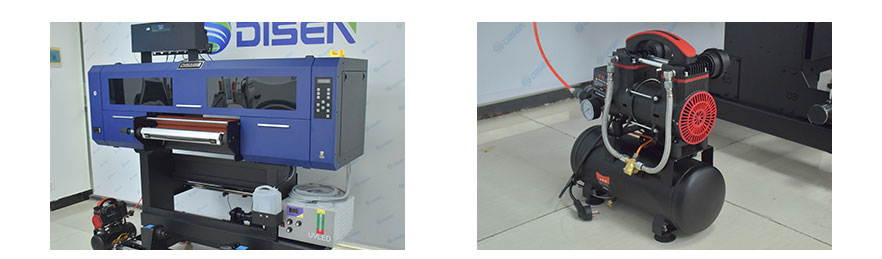

The rack is designed with a widened and reinforced structure. The machine dimensions are L1800 x W1000 x H1500 mm. The operation is more stable. Using the Hoson motherboard, the quality of the machine is guaranteed.

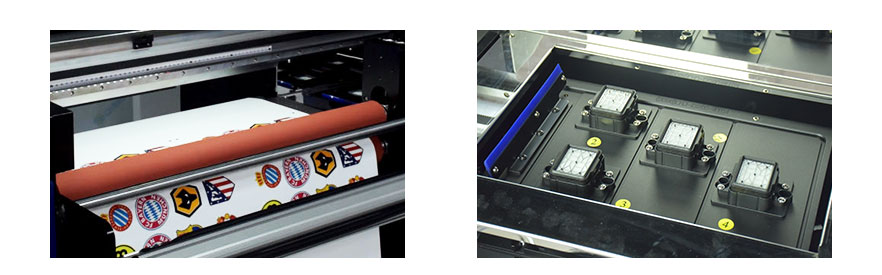

The effect picture shows the printing result produced by the i1600 print head. The machine is equipped with 4 print heads, featuring automatic cleaning, good ink reservoir moisture retention effect, and a print head anti-collision device.

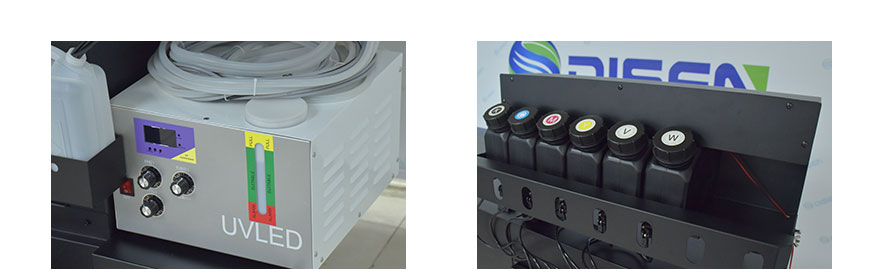

The machine is equipped with a low ink level alarm system, which enables timely ink replenishment to prevent the interruption of printing process. The LED water cooler provides better cooling and prevents the motherboard from being damaged.
Product name | DS-60cm UV DTF Printer |
Machine board | Hoson board |
Printhead | Epson I3200/i1600/xp600 3-4 heads |
Nozzle setting | 8 rows with a total of 3200 nozzles, four channels, one head can spray up to four colors |
Printing direction | Bidirectional/unidirectional printing |
Guide | HIWIN guide rail |
Transmission | Servo |
Motor | Lei sai |
Ink | UV ink |
Color | White + Color + Gloss varnish + Glue |
Ink capacity | 1500ml |
Printing speed | 720*1200dpi (4PASS) 10m2/h |
720*1800dpi (6PASS) 4m2/h | |
720*2400dpi (8PASS) 3m2/h | |
Paper feeding system | One protective film paper receiver |
Paper collection system | 1 protective film paper receiver |
Rubber rollers | High-temperature heat-sealing rollers, up to 300°C |
Pneumatic lifting | 2 pneumatic lifts |
Driven rod | 2 controls for paper feed balance during lamination |
Print width | 700mm wide |
Printing platform | Aluminum electroplated suction platform |
Lamination function | Dynamic intelligent adjustment of film coating balance,capable of both hot and cold coating |
Keypad | One-click cleaning with automatic online menu |
Ink heating system | Digital display adjustable temperature ink heating,Automatic white ink stirring |
UV curing system | Water chiller + LED UV lamp |
RIP software | PP/PF |
Data transmission | USB port/IP network interface |
Printing material | Flexible advertising materials, crystal label materials |
Power | 1800W |
Work environment | Temperature 20-32°C |
Humidity 40-75% | |
Body size | L1800xW1000xH1500 |
Outer box dimensions | L2440xW1140xH730 |
Net weight | 260KG |
Gross weight | 330KG |

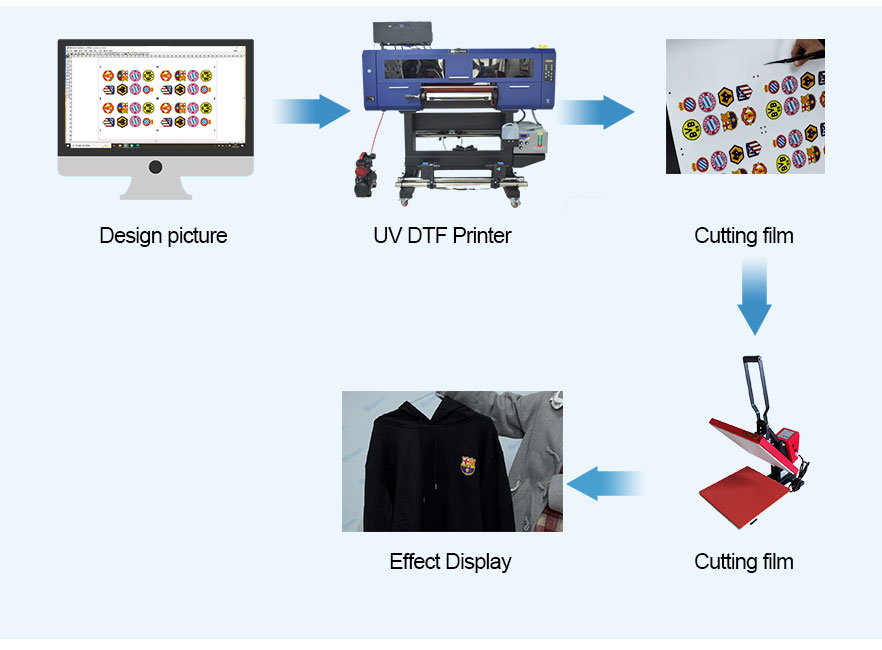

To transfer a three-dimensional logo onto clothes, the first step is to create the pattern on the computer and do the layout. Then, the UV DTF prints according to the computer-generated image. Next, the printed labels are cut, and then transferred onto the clothes using a Heat press Machine.
South Africa exhibition, photo with customers
Dubai exhibition, photo with customers
Nigeria exhibition, photo with customers

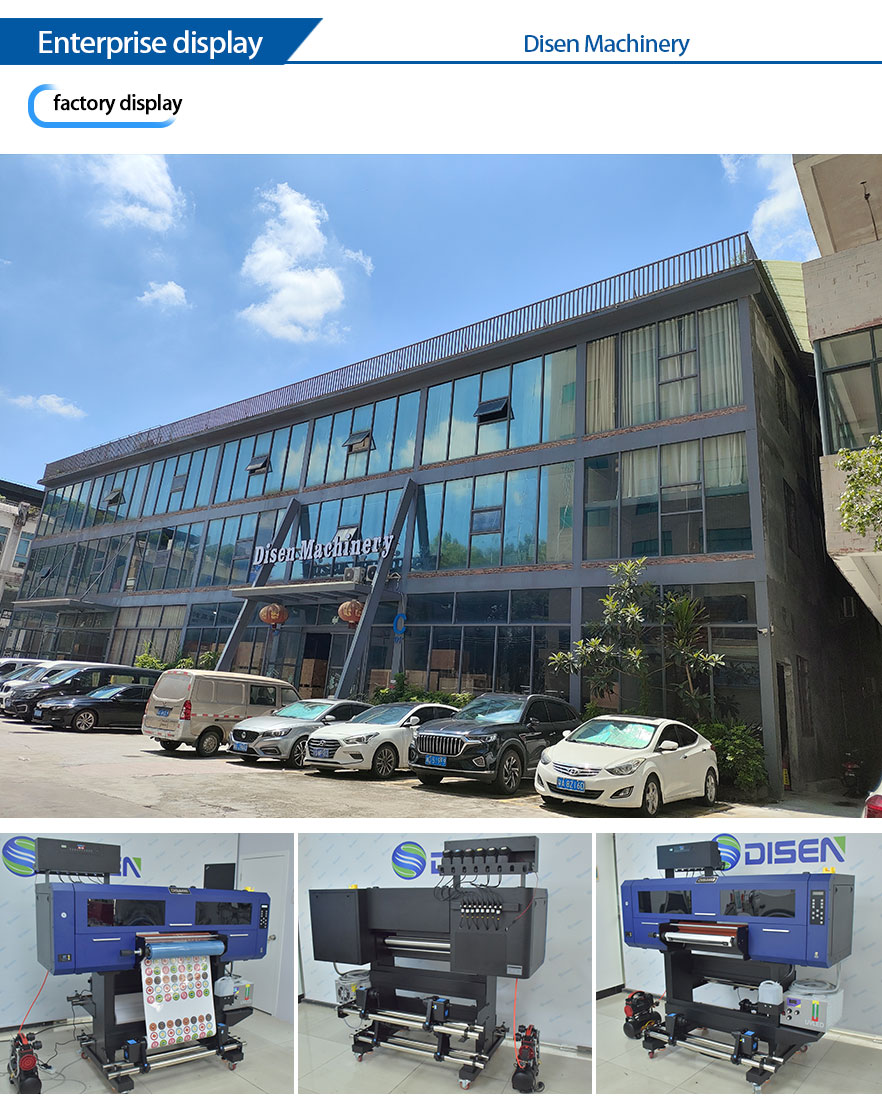

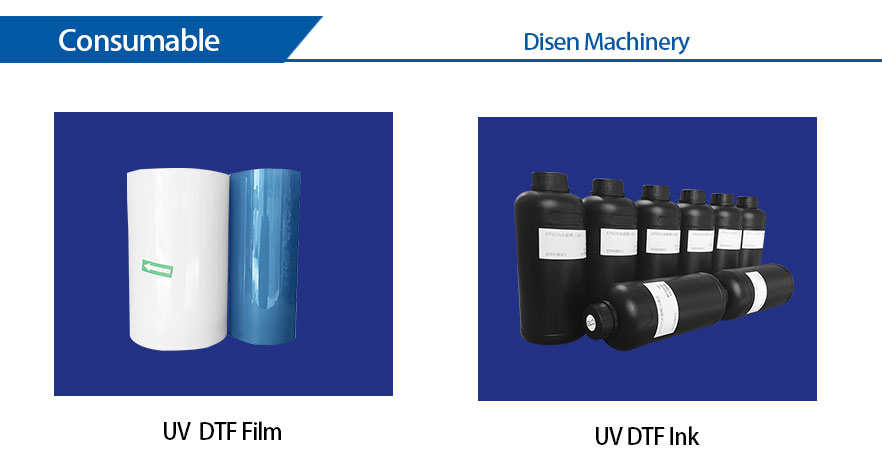

Disen Company is a production, sales integration of enterprises, we serve the world's customers, customer-centric, one-stop service. You can buy the machine you need from us, and you can also buy the consumables related to the machine. We can recommend products according to your needs, budget, and provide more help for your business.
The machine comes with a one-year warranty. We offer lifetime after-sales service. After receiving the machine, our technical team will provide guidance for installation. During use, if you encounter any after-sales issues, we will handle them for you both online and offline.
Metals: Stainless steel, aluminum alloy, iron, copper, metal handicrafts
Glass: Wine bottles, glass cups, cosmetic bottles, lighting glass
Plastics: ABS, PET, PVC, acrylic, plastic casing
Leather: Leather, PU, artificial leather, leather goods
Wood: Solid wood, particle board, painted wood
Ceramics: Ceramic cups, handicrafts, bathroom fixtures
Stone: Marble, stone slabs
Others: Helmets, fishing gear, 3C electronic device casings, gift boxes, instrument surfaces
The three-dimensional labels produced by UV printing technology are very popular in the clothing industry. It is a popular technique in the current clothing accessories and customization market, and has seen rapid growth in the fields of trendy brands, sports, cultural creation, and small-batch customization.
