DS-M6090
DISEN
1. Personalized Gift Customization
Stainless steel water bottles, ceramic mugs, tumblers, phone cases, power bank, pen custom logo printing
2. Crystal Sticker Label Factory
UV transfer crystal AB film, packaging stickers, brand logo decals for cosmetic & gift boxes
3. Advertising Signage Industry
Acrylic signs, wooden crafts, metal nameplates, canvas decorative paintings
4. Leather & Packaging Factory
Leather wallets, gift boxes, cosmetic packaging, plastic cosmetic bottles
5. Home Decoration Crafts
Wood ornaments, glass table mats, decorative tile printing
Two or three XP600 print heads optional, stable ink output, white ink circulation system effectively prevent nozzle clogging, reduce daily maintenance frequency.
Two or three XP600 print heads optional, stable ink output, white ink circulation system effectively prevent nozzle clogging, reduce daily maintenance frequency.
Low-temperature instant curing, no material deformation, long lamp service life, save electricity cost compared traditional mercury lamp.
Special rotating jig for stainless steel bottles, ceramic mugs, tumblers, realize full-surface circular pattern printing without blind area.
Model | 6090UV 2H | 6090UV 3H |
Print head | EPSON XP600 | |
Printer size | 600mm*900mm | |
RIP software | Maintop/photoprint | |
Max resolution | 720*1440 DPI | |
Printer thickness | 0mm-150mm | |
Power | 550w | 650w |
Voltage | 110V-220V | |
Ink type | UV Ink | |
Image format | JPG/TIFF/PDF | |
Weight | 220KG | 240KG |
Machine size | 1550mm*1410mm*580mm | 1550mm*1680mm*660mm |
Package size | 1640mm*1545mm*795mm | 1840mm*1700mm*840mm |
Ink color | (C M Y K Lc Lm W1 W2) | (C M Y K Lc Lm W1 V1) |
Printer speed | 6pass 4㎡/8pass 3㎡/12pass 2㎡ | |
Operation system | Win7/Win8/win10(64bit) | |
Printing material | Glass,plastic,Acrylic,wood etc. | |
✅ Optional 2 / 3 Epson XP60 print head configurations, balance printing speed & production cost
✅ Large 600×900mm printing format, support A2/A3 oversized flat materials
✅ Suction absorption platform, stable positioning for thin film & paper media
✅ Matched rotary jig for cups, water bottles, tumblers cylindrical printing
✅ Water cooling LED UV curing system, energy-saving, no thermal damage to printing materials
✅ CMYK Lc Lm White + Varnish multi-ink channel, 3D raised crystal sticker effect
✅ Max printing thickness 150mm, adapt thick wood, box, leather products
✅ High resolution 720*1440dpi, vivid photo-level color printing
✅ Silent wear-resistant tow chain, long service life, low machine failure rate
✅ Compatible Maintop & Photoprint mainstream RIP software, easy pattern import
✅ Dual 110V/220V global voltage, movable lockable machine stand
DS-M6090 6090 UV flatbed printer is a medium-format industrial multifunctional UV printing machine independently developed by DISEN, equipped with optional 2 or 3 original Epson XP600 print heads. It supports both flat material direct printing and cylindrical bottle/tumbler rotary printing with matched rotary jig, perfectly solving the personalized customization demands of small and medium printing factories, gift shops and crystal sticker processing studios.
The printing working area reaches 600900mm, supporting maximum printing thickness up to 150mm. Adopts water-cooled LED UV curing lamp, instant drying without waiting, printed patterns scratch-proof, waterproof and fade-resistant. Ink configuration supports CMYK Lc Lm White + Varnish, realizing 3D embossed glossy crystal sticker effect, rich color gradient and delicate image details up to 7201440dpi high resolution.
The machine built-in suction platform to fix thin media, wear-resistant silent tow cable protects internal pipelines during long-time reciprocating movement. Dual 110V/220V wide voltage design fits North America, Europe, Southeast Asia power standards, desktop stable frame with movable casters, easy to shift in workshop. It can print glass, acrylic, wood, leather, plastic, metal, ceramic bottles, phone shells and other unlimited materials without pre-coating treatment.
UV CMYK LC LM White Varnish ink, UV crystal AB film, rotary bottle jig, nozzle cleaning fluid, maintenance tool set, English operation manual & tutorial video USB disk.
Complete UV Crystal Sticker Production Workflow
Design patterns on computer, export PDF/JPG files to RIP software
Import patterns to DS-M6090 UV printer, print on PET crystal AB film
Cover protective film via laminating machine after UV curing
Cut finished crystal stickers manually or by cutting machine
Paste stickers on bottles, phone cases, boxes and other smooth surfaces

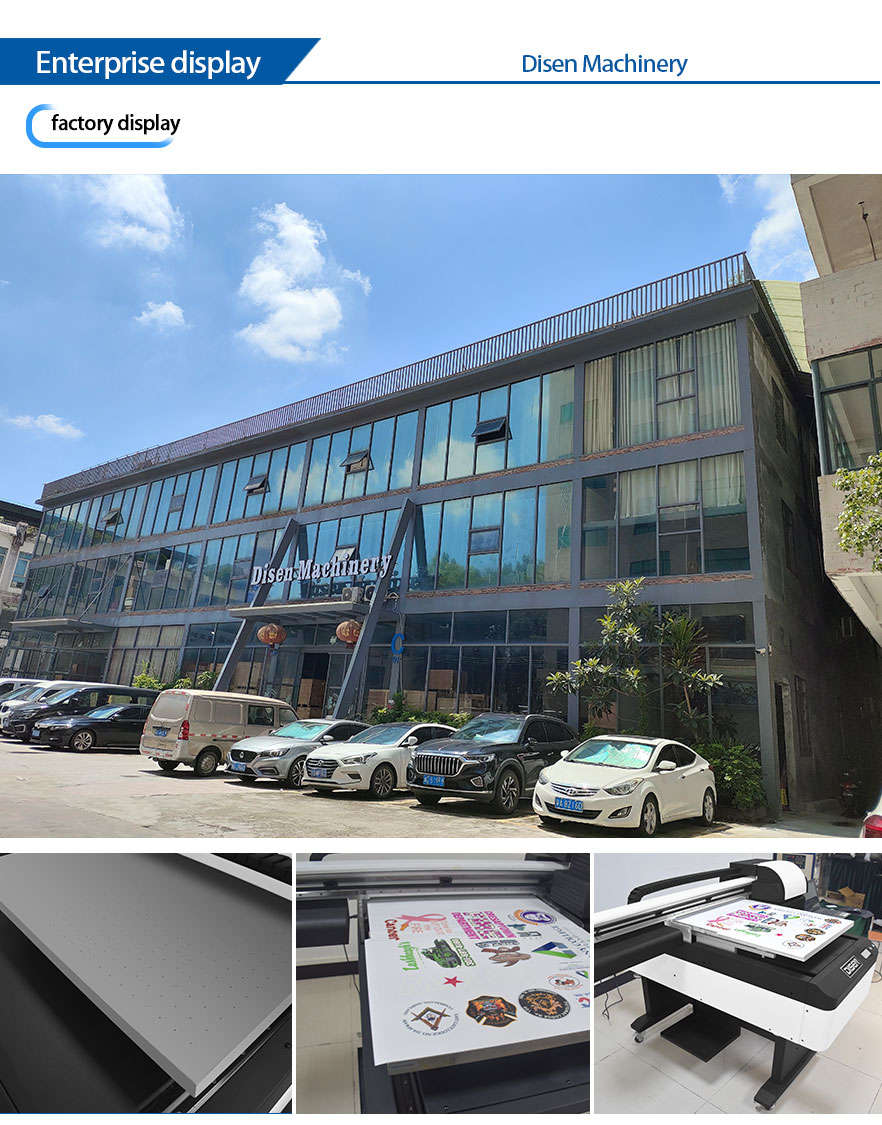

We are professional printing equipment manufacturer with over 30 years R&D and export experience, annually participate in South Africa, Dubai, Nigeria overseas printing exhibitions. Every DS-M6090 UV printer passes 72 hours aging running test before delivery to eliminate factory defects.
We provide one-year warranty for XP600 print heads and core electrical components, lifelong affordable ink & spare parts supply. Free one-on-one online remote technical support via WhatsApp/Email, full English operation tutorial videos provided together with machine. Our full product line includes DTF printer, UV DTF printer, embroidery machine, sewing machine to realize one-stop bulk procurement for global printing factories.
A: Two configurations optional: 2 Epson XP600 print heads or 3 XP600 print heads for faster printing speed.
A: Yes, we provide matched rotary jig as standard accessory to realize full-surface bottle printing.
A: It supports printing materials up to 150mm thick, fit wood boxes, thick leather crafts.
A: Yes, ink channel supports CMYK Lc Lm white + varnish to make 3D embossed crystal sticker effect.
A: Water cooling LED UV lamp, low temperature instant drying without damaging printing materials.
A: Dual 110V/220V wide voltage optional, adapt all countries power supply standards.
A: Support mainstream RIP software Maintop and Photoprint, easy pattern editing & import.
A: 1-year warranty for core print heads, free English operation videos, lifelong online remote technician guidance and low-cost UV ink supply.
A: Acrylic, glass, wood, leather, plastic, metal, ceramic bottle, phone case, crystal AB film, canvas etc.
