What is a DTG Printer A Step-by-Step Analysis

In the dynamic field of personalized clothing customization, Direct To Garment (DTG) printing technology has become a revolutionary technique, completely changing the way designs are presented on fabrics. Unlike traditional methods such as screen printing or heat transfer printing, DTG printing is carried out digitally, combining precision, flexibility and efficiency - making it the preferred choice for both small businesses and large-scale manufacturers. This article will explore the basic principles of DTG printers, analyze their operation processes, and emphasize their applications in the clothing industry.

What is a DTG Printer?

DTG printer is a specialized device that prints designs directly onto fabric using water-based inks, similar to how an inkjet printer works on paper but adapted for textile surfaces. What sets DTG apart is its ability to handle intricate details, vibrant color gradients, and small production runs without the high setup costs associated with traditional techniques. Equipped with piezoelectric printheads, these printers deposit tiny droplets of ink onto the fabric, ensuring sharpness and color accuracy that remain durable even after multiple washes.

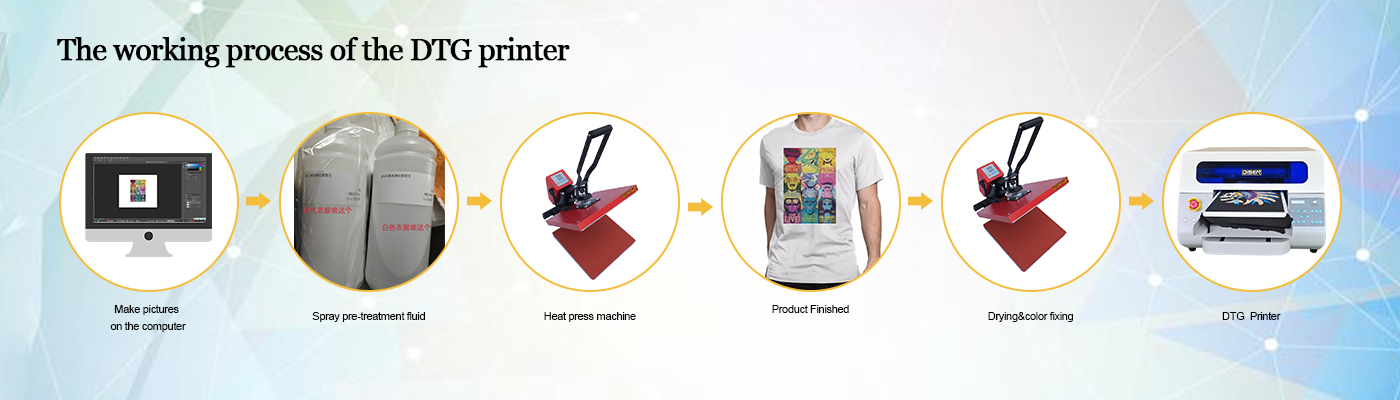

The working process of the DTG printer

The DTG printing process consists of several key steps that ensure optimal results. The first step is fabric preparation, a critical stage that directly impacts print quality. Most DTG printers perform best on natural fibers, particularly cotton, which has excellent ink absorption properties. Before printing, the fabric must be thoroughly cleaned to remove any dust, oils, or residues that could interfere with ink adhesion. For light-colored fabrics, a pretreatment solution is often applied—a water-based formula that helps the ink bond to the fibers and prevents bleeding. This solution is typically sprayed evenly and allowed to dry completely, either air-dried or using a heat press for efficiency.

Next comes design preparation, where digital artwork is optimized for printing. Using graphic design software such as Adobe Photoshop or Illustrator, designers create or modify images to meet size and resolution requirements (usually 300 DPI for clarity). The design file is then loaded into the DTG printer’s proprietary software, which converts the image into a format the printer can interpret. This software allows adjustments to color saturation, contrast, and print size, ensuring the final output matches the original vision.

The printing step itself is where the magic happens. The prepped garment is loaded onto the printer’s platen—a flat surface that holds the fabric taut to prevent wrinkling. Modern DTG printers often feature automatic platen adjustment, ensuring the printhead maintains the ideal distance from the fabric. As the printer begins operation, the printhead moves back and forth, depositing layers of ink in cyan, magenta, yellow, black, and sometimes additional colors like white for printing on dark fabrics. White ink is particularly crucial for dark garments, as it acts as a base layer, making the colors appear bright and vivid against dark color backgrounds.

After printing, the garment undergoes a curing process to set the ink. This involves passing the printed fabric through a heat press or conveyor dryer at temperatures between 160–180°C (320–356°F) for 60–90 seconds. Curing is essential because it evaporates any remaining moisture in the ink and strengthens the bond between the ink and fabric fibers, ensuring longevity and wash fastness. Once cured, the garment is inspected for quality, with any final touches or trims applied before it’s ready for distribution.

The advantages of DTG printers

One of the most significant advantages of DTG printers is their suitability for small batch production, making them ideal for custom clothing, limited edition collections, and personalized products. Unlike screen printing that requires expensive templates for each color, DTG can achieve on-demand printing with short setup time, providing unique designs for businesses in a short amount of time.

In addition, the use of water-based ink by DTG is in line with the industry's shift towards sustainable development, as these inks are non-toxic, generate less waste, and have a lower impact on the environment. Whether it is personalized T-shirts, branded sportswear, or customized handbags, DTG printers can provide high-quality results with fast delivery times, thereby improving customer satisfaction and loyalty. For sports teams, schools, and corporate activities, DTG provides an affordable way to create branded products with detailed logos and text.

Summary

In summary, DTG printers represent a significant advancement in the field of textile printing, combining digital precision with the multifunctionality of textiles. By simplifying the printing process into manageable steps - from fabric preparation to curing - they enable businesses to efficiently produce high-quality, customized clothing. As consumers' demand for personalization and sustainability continues to grow, DTG printing will continue to be the cornerstone of innovation in the clothing industry, combining creativity with technology to turn endless design possibilities into reality.
