Hat embroidery is one of the most demanding applications in the embroidery industry. Unlike flat garments, caps have curved surfaces, structured panels, and limited embroidery areas, which require specialized equipment and precise control. To achieve consistent quality and high production efficiency, choosing the right hat embroidery machine is essential.
This article introduces a complete hat embroidery equipment solution, focusing on computerized embroidery machines designed for caps, explaining machine configuration, production workflow, and key advantages for commercial embroidery businesses.
Embroidery on hats is technically more complex than embroidery on T-shirts or jackets. Common challenges include:
Curved embroidery surface
Limited embroidery area on the front panel
Thick or reinforced fabrics
Risk of distortion, puckering, or misalignment
These challenges make standard flat embroidery machines unsuitable for professional cap production. A dedicated hat embroidery solution is required to ensure stable stitching and accurate positioning.

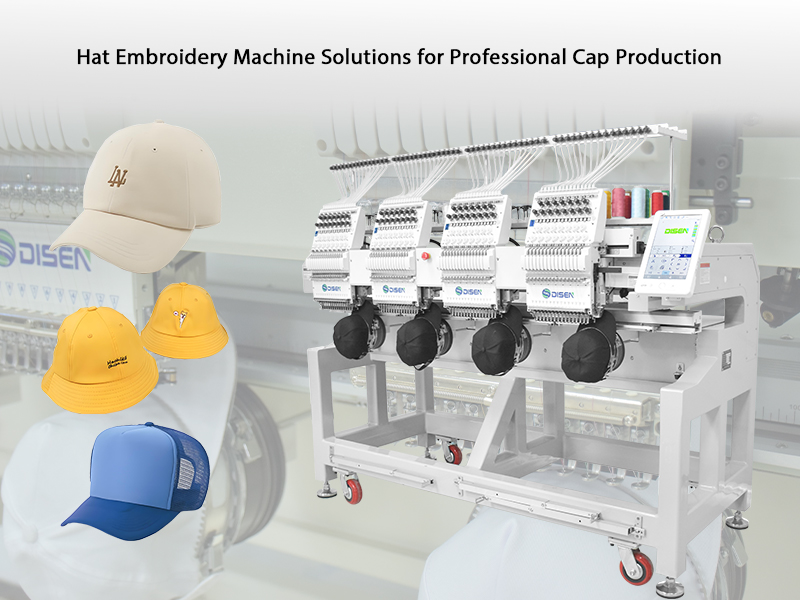

A professional hat embroidery solution is based on a computerized multi-needle embroidery machine equipped with a cap embroidery system.
Key machine components
Multi-needle embroidery head (12 or 15 needles)
Cap driver system (cap ring + cap frame)
High-speed servo motor
Touchscreen control panel
Automatic thread trimming and color change
This configuration allows the machine to follow the curved shape of the cap and maintain consistent stitch quality throughout the embroidery process.
The cap embroidery system is the core of hat embroidery equipment.
How the cap system works
The cap is mounted onto a dedicated cap frame
The cap driver rotates the cap smoothly during stitching
The needle embroiders from the center toward both sides
The curved motion keeps the fabric stable and flat
Compared with flat hoop embroidery, the cap system reduces fabric tension issues and improves stitch accuracy on structured caps.
Different hat designs require different embroidery ranges. Choosing the correct machine size directly affects production efficiency and design flexibility.
Typical hat embroidery range
Height: 45–60 mm
Width: 100–120 mm
Machine selection recommendations
Single-head embroidery machines
Ideal for small businesses, startups, and custom embroidery shops.
Multi-head embroidery machines
Suitable for mass production, factories, and promotional product suppliers.
Machines with larger embroidery ranges allow wider logos and more complex designs, reducing the need for design resizing and rework.

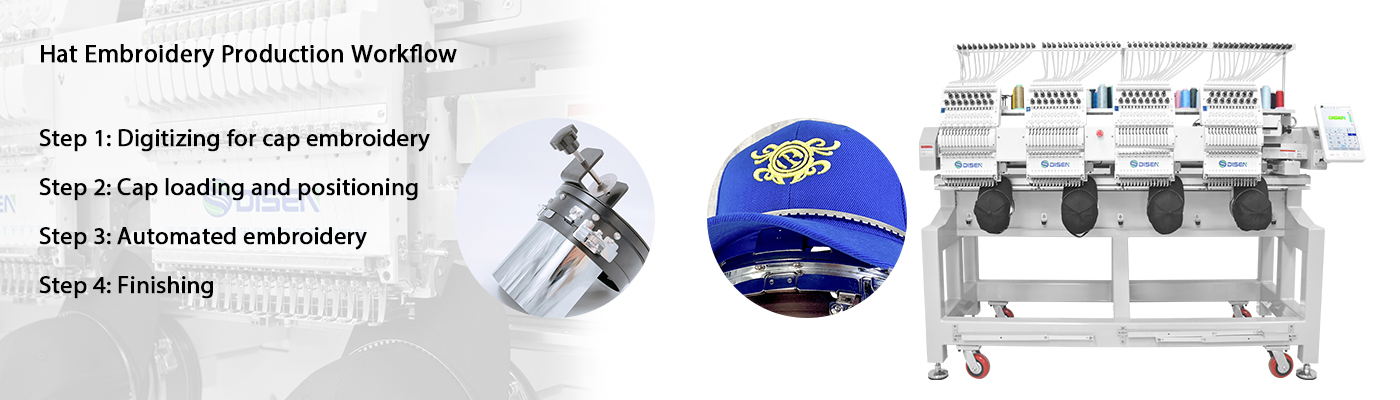

A professional hat embroidery machine provides a stable and repeatable production process.
Step 1: Digitizing for cap embroidery
Hat embroidery files must be digitized specifically for caps. This includes:
Center-out stitching direction
Optimized stitch density
Reduced jump stitches
Optional 3D puff embroidery settings
Step 2: Cap loading and positioning
The operator mounts the cap onto the cap frame, aligns the center line, and secures the brim and crown.
Step 3: Automated embroidery
The machine runs automatically:
Precise needle movement
Automatic color changes
Stable stitching at high speed
Step 4: Finishing
After embroidery, the cap is removed, threads are trimmed, and quality is inspected.
Using dedicated hat embroidery equipment provides clear advantages for commercial users:
Stable embroidery on curved surfaces
High efficiency for bulk orders
Consistent stitch quality across batches
Reduced rejection rate
Support for flat embroidery and cap embroidery in one machine
Many computerized embroidery machines support both cap frames and flat hoops, offering excellent versatility and return on investment.
Hat embroidery machines are widely used in:
Brand logo caps
Corporate and promotional hats
Sports team caps
Fashion and streetwear brands
Customized gift and souvenir production
With growing demand for personalized products, hat embroidery remains a profitable and stable business segment.
A complete hat embroidery solution includes:
Computerized multi-needle embroidery machine
Cap embroidery system (cap frames and driver)
Embroidery digitizing support
Operator training and technical guidance
By investing in professional hat embroidery equipment, manufacturers and embroidery businesses can expand their product range, improve production efficiency, and deliver high-quality embroidered caps to global markets.
