DS-GA1212
DISEN
1.Garment Mass Production Factory
Fashion clothing, wedding dresses, hoodies, sportswear, work uniforms, jeans, cheongsam collar & chest logo embroidery
2.Shoes & Hat Processing Plant
Baseball caps, sneakers, leather shoes, socks, gloves, all curved surface embroidery decoration
3.Bags & Leather Goods Factory
Canvas bags, leather wallets, handbags, belts brand logo and pattern embroidery
4.Home Textile Production
Curtains, quilt covers, throw pillows, scarves, table cloth elegant decorative stitching
5.Souvenir & Handicraft Factory
Custom promotional gifts, tourist souvenirs, toy fabric 3D stereo embroidery

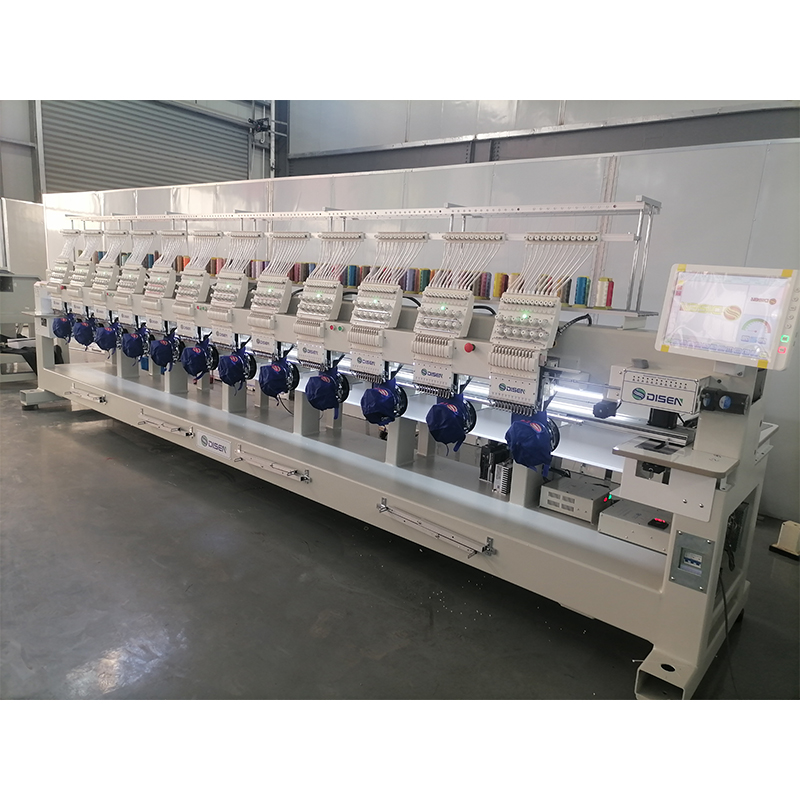

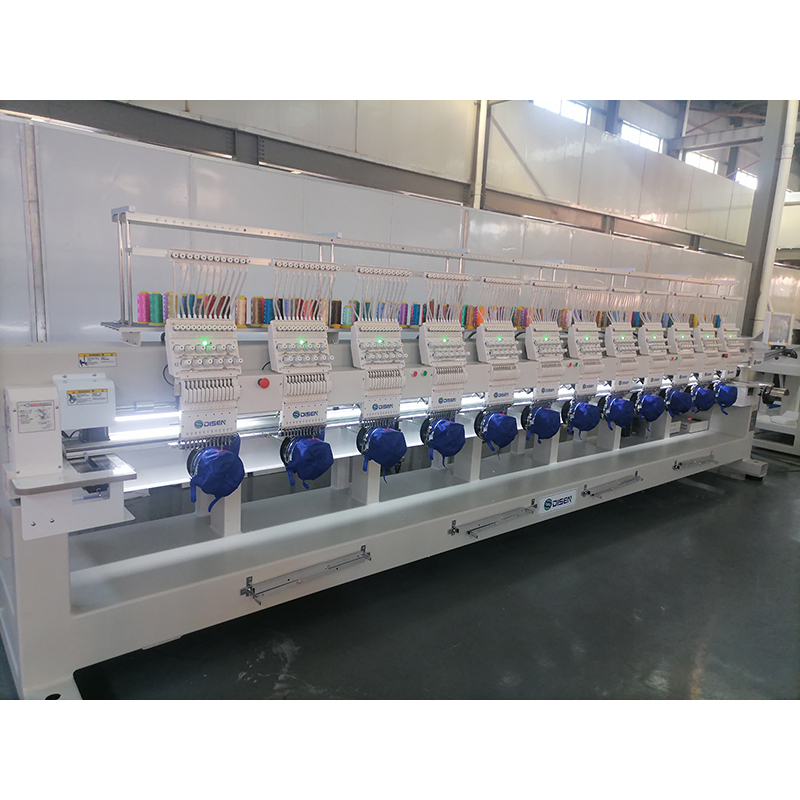

12 machines for embroidery, multi-functional embroidery devices. Cap embroidery, garment embroidery, and embroidery on flat fabrics are all supported. The high-speed embroidery can help you increase your work efficiency.
✅ 12 independent embroidery heads work at the same time, ultra-high mass production efficiency
✅ Optional 12/15 needle configuration to meet multi-color complex pattern demands
✅ Topwisdom 10-inch true color touch control screen, supports multiple international languages
✅ Max speed 1200 SPM, stable stitching without skipped or broken threads
✅ Integrated intelligent functions: auto trim, auto color change, thread break alarm, power-off recovery
✅ Large storage capacity: store hundreds of patterns and massive stitch data
✅ 270° wide-angle cap embroidery system, perfect curved hat pattern output
✅ Heavy-duty shockproof steel frame with moving wheels, stable and easy to shift
✅ Dual voltage AC110-220V global universal power supply
✅ Compatible DST, DSB mainstream embroidery design file formats
✅ One machine realizes flat / cap / shoe / bag / 3D multi-scene embroidery

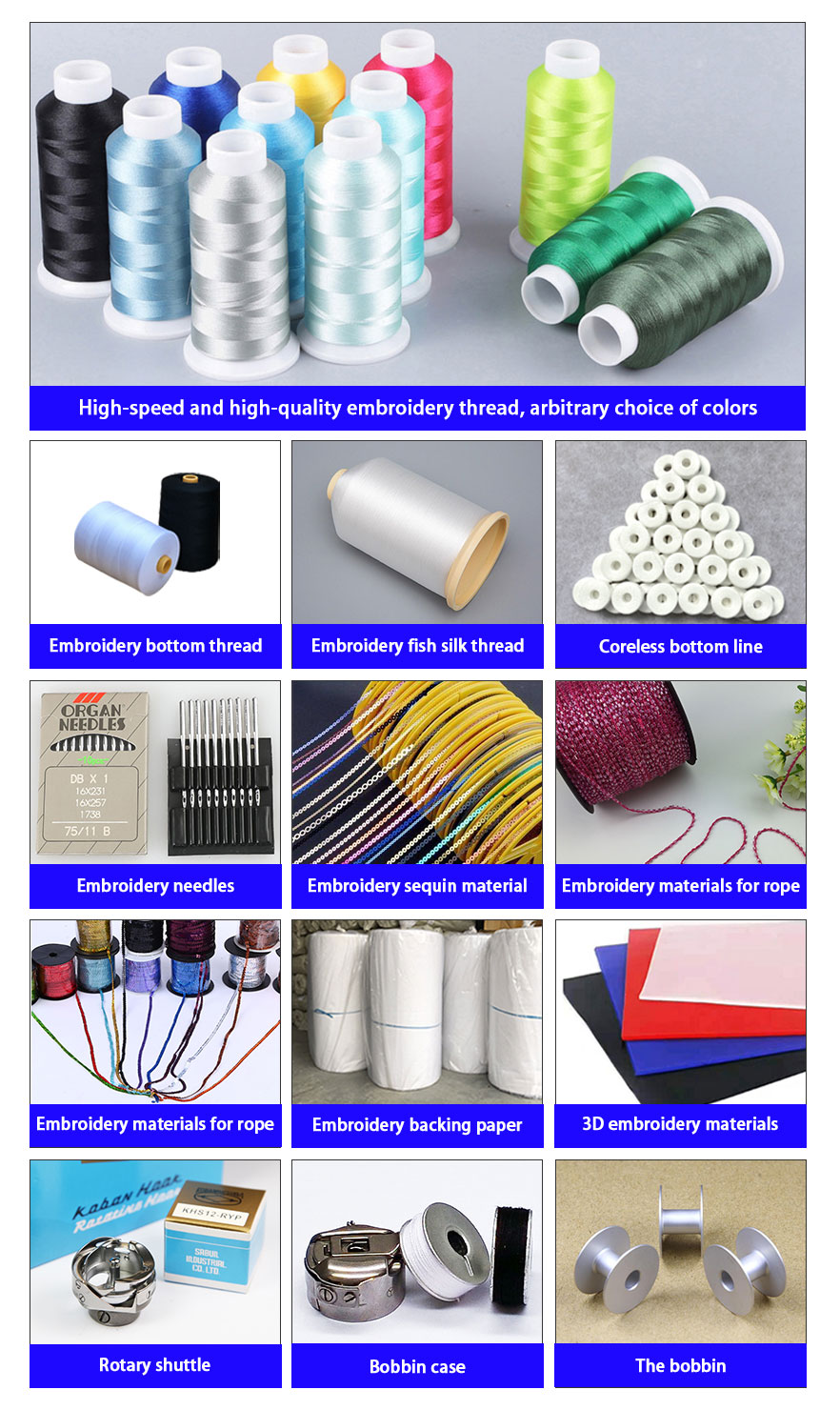

✅ Full set free standard accessories, one-stop factory supply of embroidery consumables
Product name | 12 heads Embroidery Machine |
Needles | 12,15 |
Embroidery area | 400mm * 450mm |
Function | Suitable for embroidery on flat,caps, finished garments,shoes,belts,bags etc. |
Net weight | 1700kgs |
Gross weight | 1800kgs |
Packing size | 5850mm*1170mm*1370mm(L*W*H) |
Control system | Topwisdom |
Computer | High definition true color 10-inch LCD touch screen computer,With photo embroidery function |
Maximum speed | 1200 SPMMulti language supportedMachine can reads multiple design formats , like DST , DSB etc |
Maximum storage | 200 million stitches or 800pcs designAuto thread trimmer,auto color change |
Power supply | AC110-220v(50-60Hz), DC36 safe voltage output |
Machine power | 1600W |
Consumption | 270°wide angle cap system |
Standard accessories | Cap frame,aluminum frames with table, plastic frame,tool box,spare partsmultiple sizes of hoops for a various embroidery needsHeavy Duty steel structure with heavy wheels to ensure stability & mobility |
1.Topwisdom Intelligent Touch Control Panel
10-inch HD true color screen, supports multiple international languages, USB/WiFi pattern import, real-time running data display, one-click parameter adjustment for speed, stitch length and auto thread cutting delay.

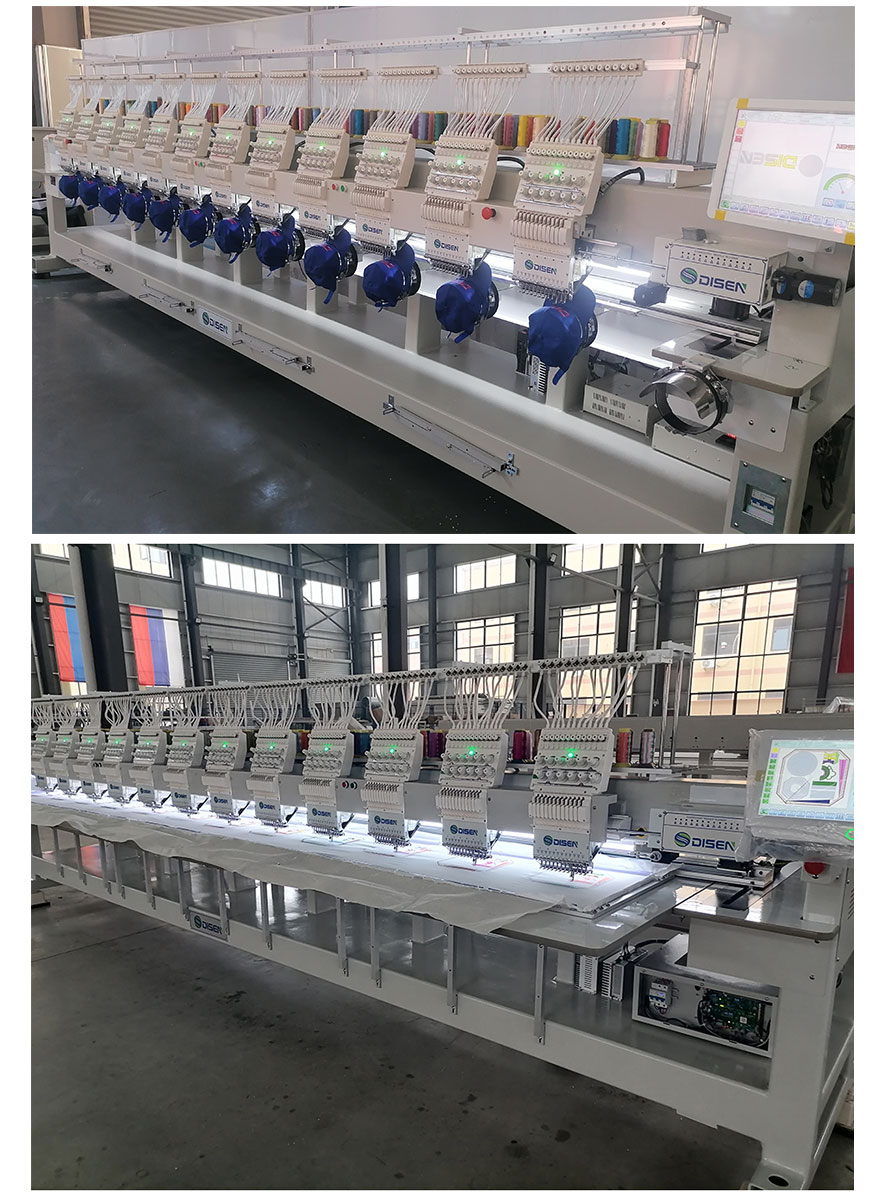

2.Multi-Head Embroidery Working Assembly
12 groups of independent needle bar assemblies, each head can run synchronized patterns, uniform stitch tension to avoid uneven fabric tightness.

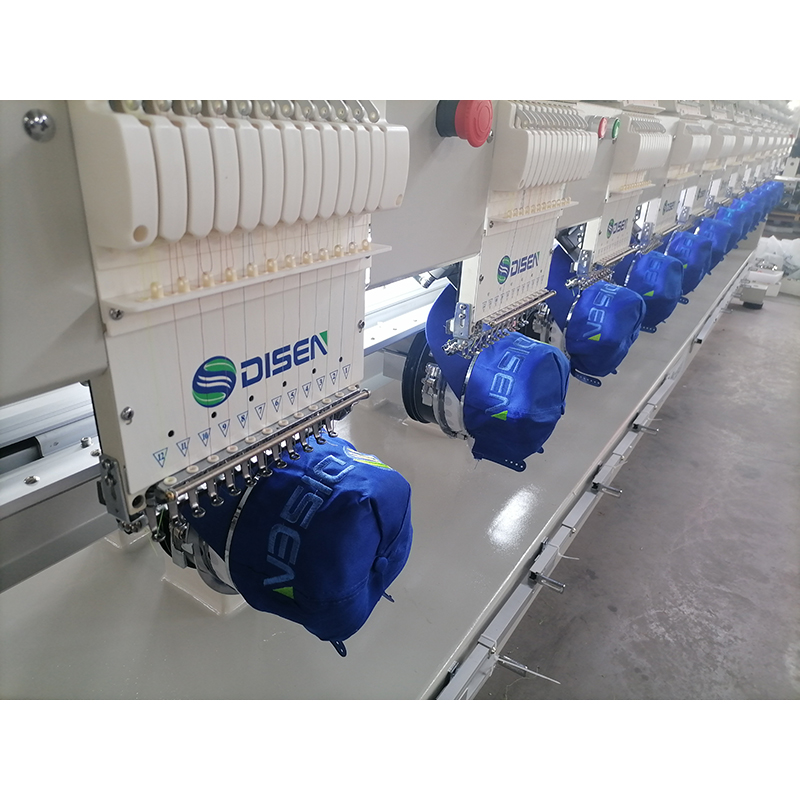

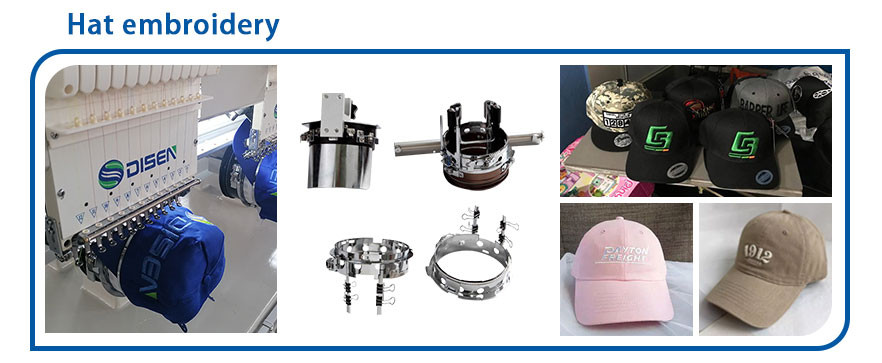

3.270° Wide Angle Cap Embroidery System
Special cap driver, cap seat and curved frames, fully fit baseball caps, trucker hats without pattern distortion.

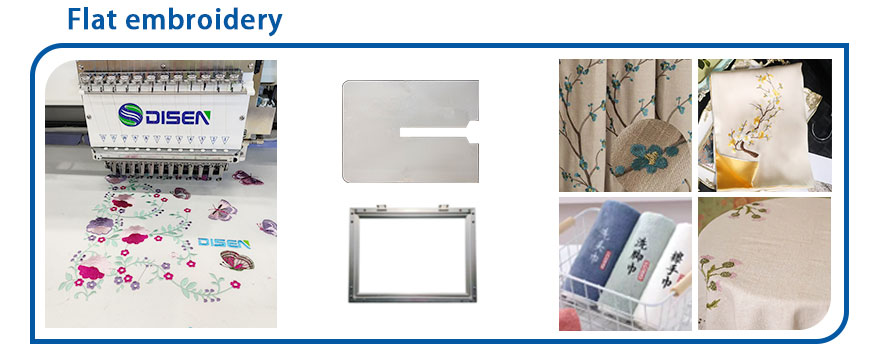

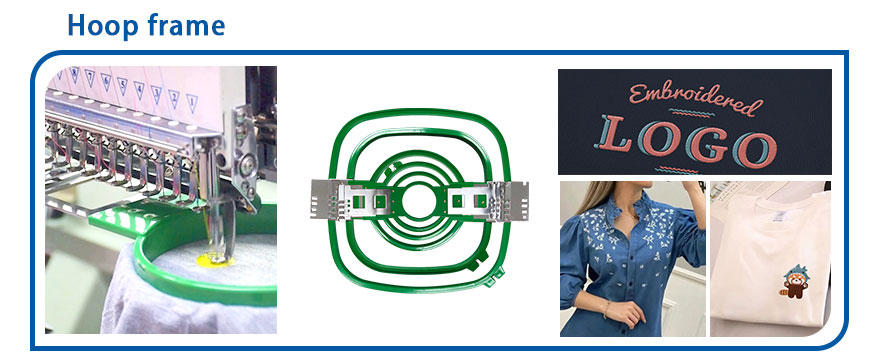

4.Multi-Size Embroidery Hoop Kits
Equipped with multiple aluminum flat frames, plastic garment hoops, small bag hoops to match different fabric sizes.

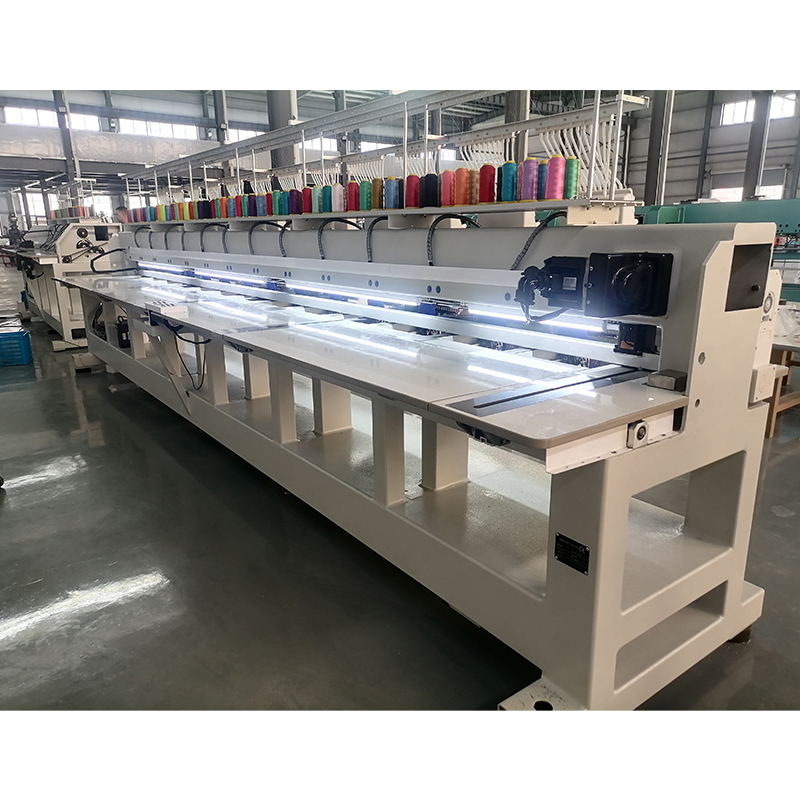

5.Mobile Shockproof Base Frame
Thickened welded steel structure with heavy-duty load-bearing wheels, lockable design to fix position during production.
6.Full Free Standard Accessories

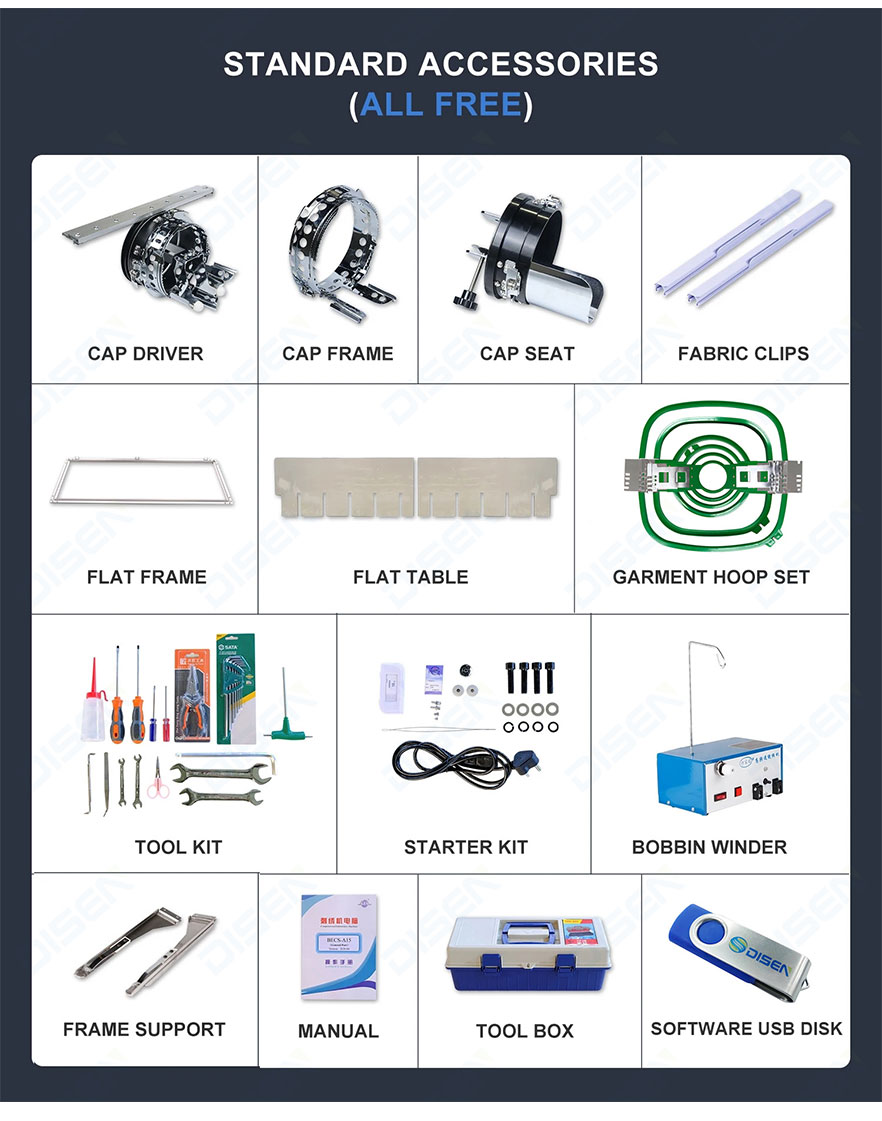

Cap driver, cap frame, cap seat, flat table, fabric clips, garment hoops, bobbin winder, tool box, spare rotary shuttles, operation manual & design software USB disk.
Design custom patterns via computer graphic software
Export embroidery files (DST/DSB) and import to machine touch screen by USB
Install matching embroidery hoop and fix fabric/cap on the station
Select needle color and set running speed parameters
Start automatic embroidery, machine alarms for thread break automatically
Complete finished embroidery and take off fabric for post-processing
South Africa exhibition, photo with customers
Dubai exhibition, photo with customers
Nigeria exhibition, photo with customers
Saudi Arabia exhibition, photo with customers

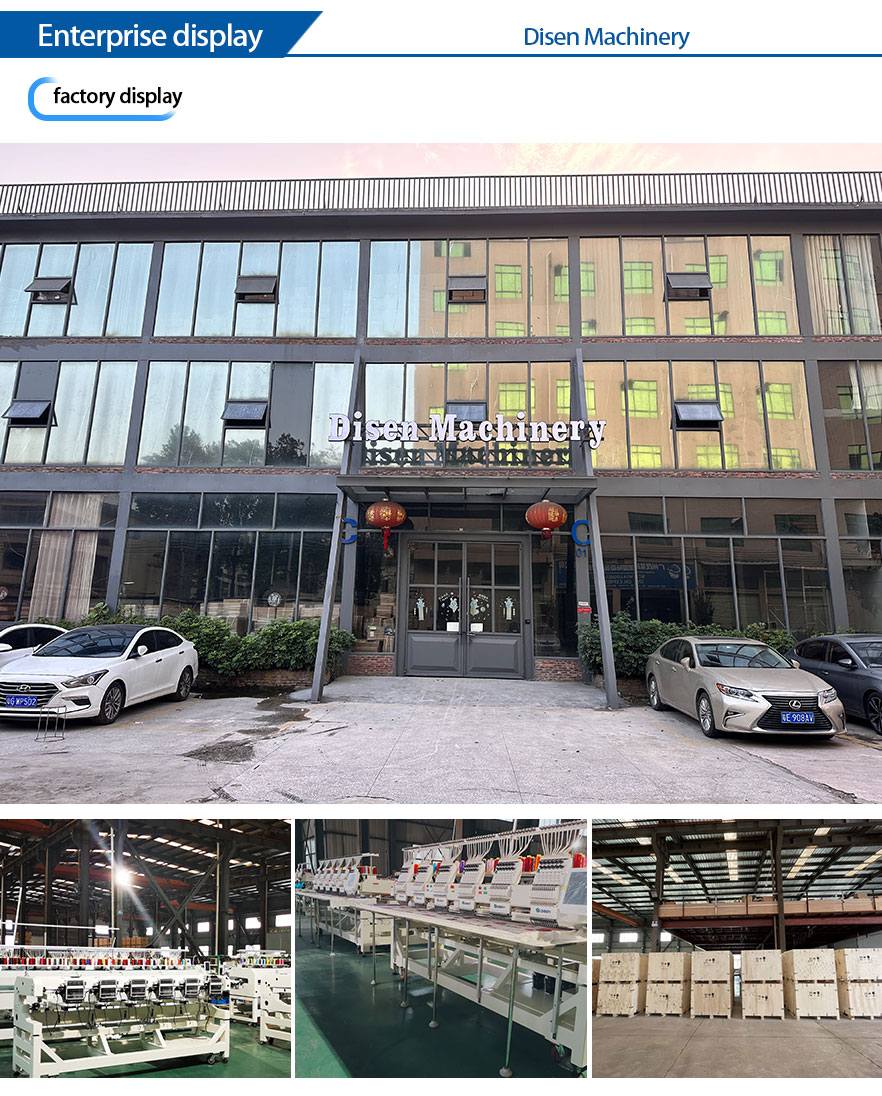

We are professional garment equipment manufacturer with over 30 years R&D and export experience. All DS-GA1212 machines pass full running inspection before delivery to eliminate factory defects.
Equipped with reliable Topwisdom control system, stable operation and convenient after-sale maintenance globally.
We provide one-year warranty for core control components, lifelong affordable spare parts supply, free English operation manuals and one-on-one online remote technical training. Our full product line covers embroidery machines, DTF printers, sewing machines and heat transfer equipment to support one-stop procurement for garment factories.
A: It is equipped with 12 independent embroidery heads, all stations can run synchronized patterns simultaneously to boost production volume greatly.
A: This model adopts mature Topwisdom intelligent control system, with 10-inch touch screen, stable performance and easy operation.
A: Yes, we support two optional needle types (12 needles / 15 needles) according to your multi-color pattern demands.
A: Equipped with standard 270° wide-angle cap embroidery system, perfectly finish all kinds of baseball cap curved surface patterns.
A: Stable high speed reaches 1200 SPM, suitable for large batch garment factory mass production.
A: Compatible mainstream embroidery formats DST and DSB, easy to import patterns via USB disk.
A: Dual wide voltage AC110–220V optional, fit all countries’ power supply standards.
A: Full set cap embroidery kits, multi-size hoops, tool box, spare rotary shuttles, operation manual and software USB disk are all free gifts.
A: 1-year core parts warranty, free operation tutorial videos, lifelong online remote technician guidance and low-cost spare parts supply.
