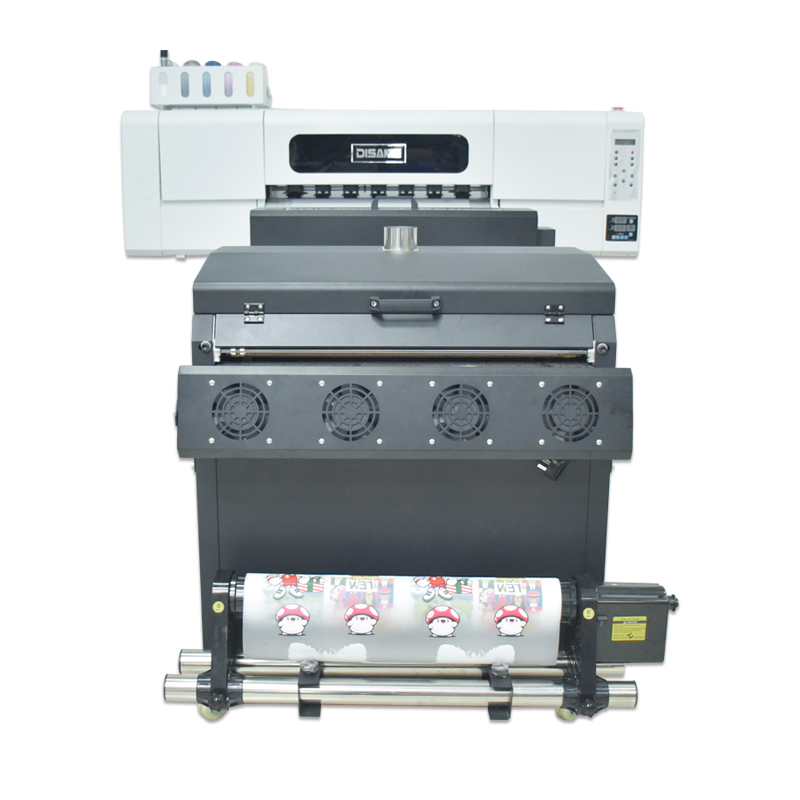

DS-MC760DW
DISEN

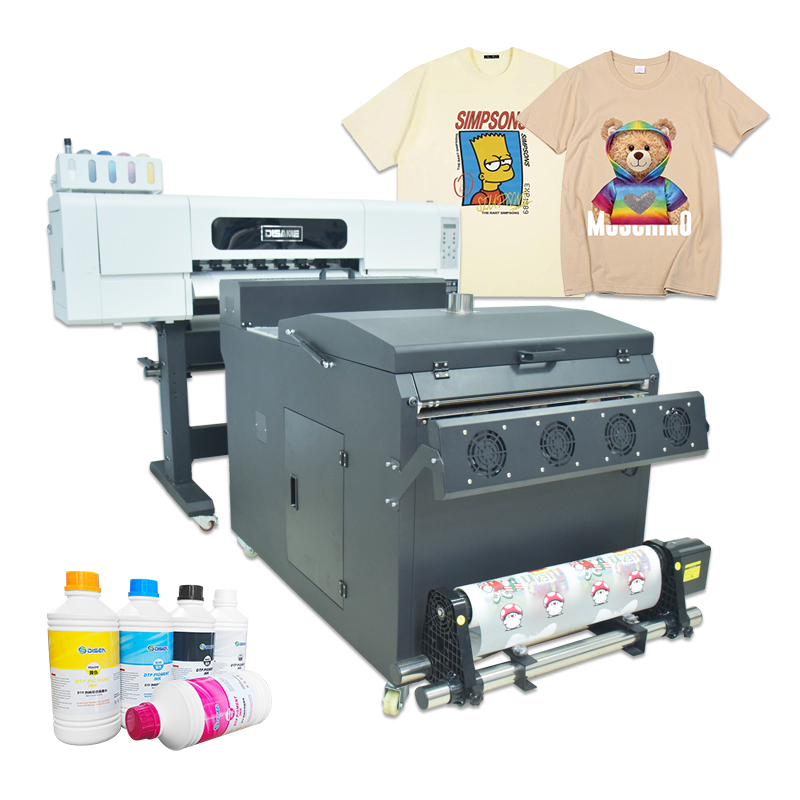

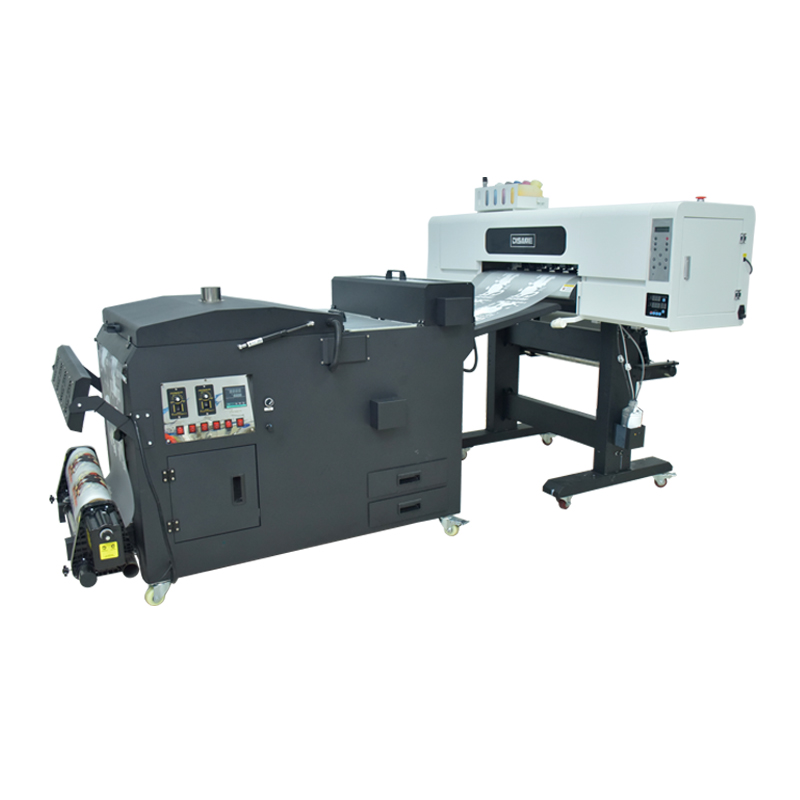

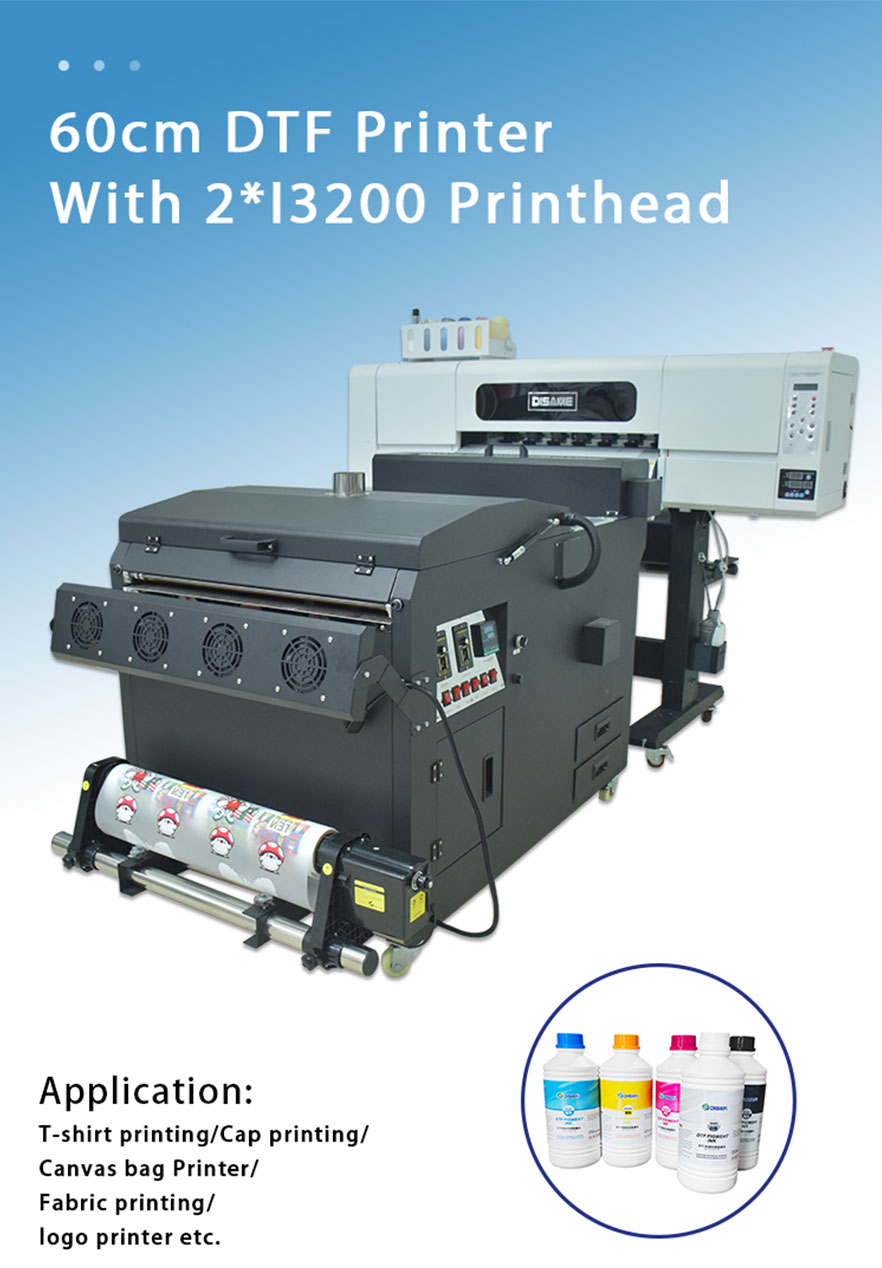

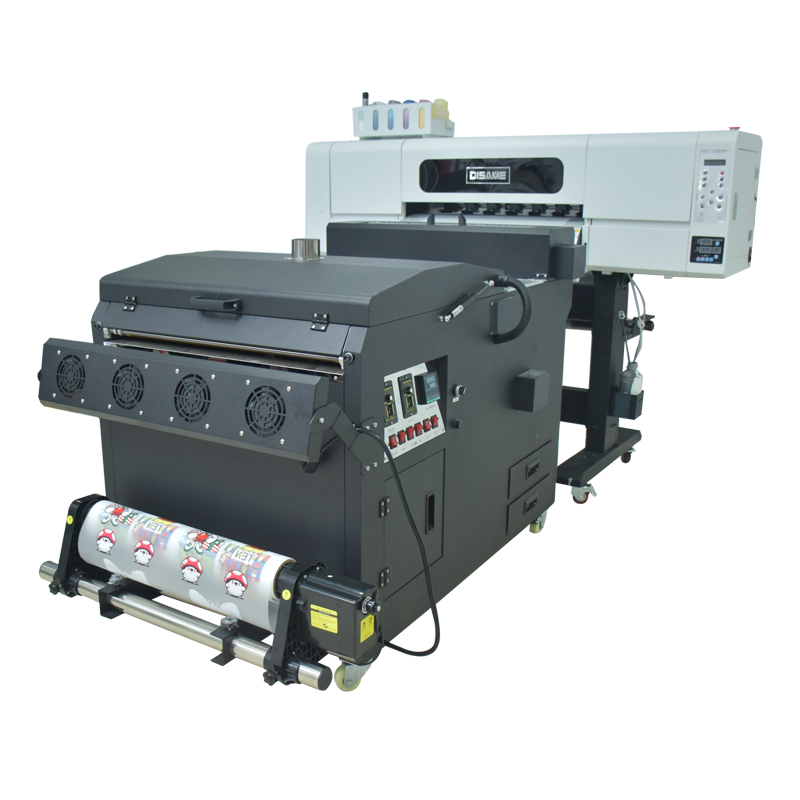

Professional printing machine for fabric, directly connected to film machine. With a simple operation process, it can be used to print on T-shirts, pillows, canvas bags, canvas shoes, umbrellas, curtains, etc. It enables a rapid process of printing and transferring patterns.
Printing width: 70 cm

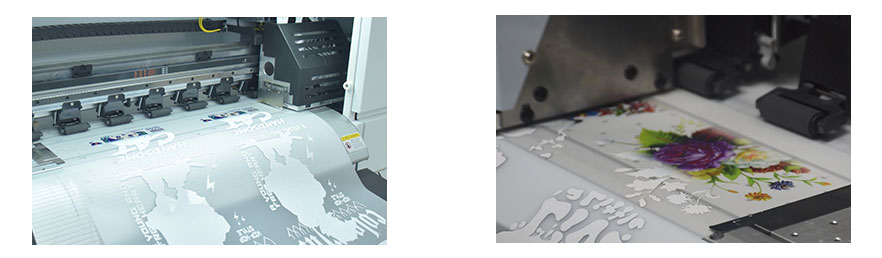

The DTF printer uses the Epson I3200 A1 print head. The maximum printing width can reach up to 70 cm, and 60 cm of DTF film can be used. On both sides of the printing table, there are clips that hold the printing film in place to prevent it from wrinkling.

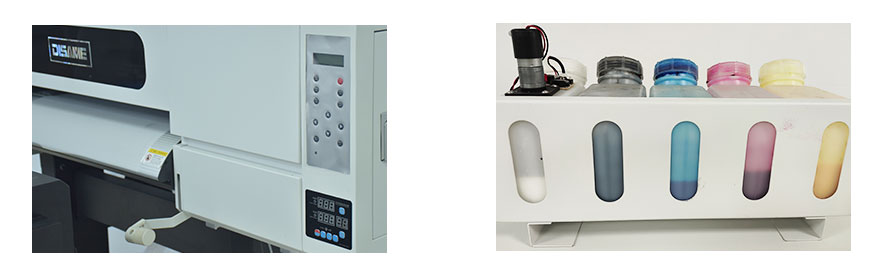

DTF color printing
The printer is equipped with a key control panel, allowing for automatic cleaning of the print head based on the quality. The ink of the DTF printer is composed of CMYKW inks, which ensures high color reproduction accuracy and vivid colors.

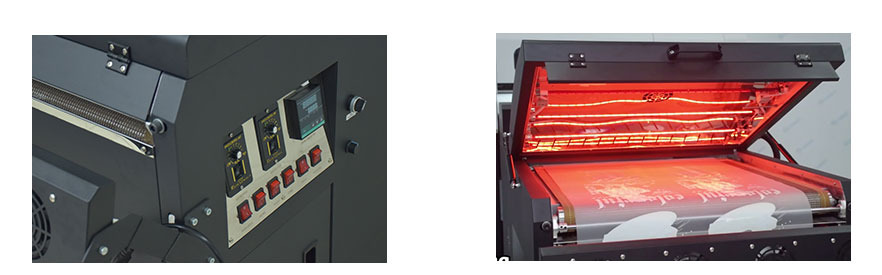

Printing film drying machine
The printed DTF film needs to be adhered with Hot melt Adhesive Powder to enhance its stickiness. Then, it should be dried using a dryer. Once the film is completely dried, it can be used.
Product name | DSA-MC760DW DTF Printer |
Printhead type | XP600/i3200 |
Number of nozzles | 2 piece(optional 3 or 4 piece) |
Model description | 70CM wide heat transfer printer |
Print orientation | Bidirectional printing / Unidirectional printing |
Nozzle height | 2mm-3mm |
Nozzle cleaning | Fully automatic cleaning, with anti-blocking flash spray function and automatic moisturizing function |
Printing speed | |
Production mode | 4pass：12m²/h |
Quality mode | 6pass：9m²/h |
Precision mode | 8pass: 6m²/h |
ink system | |
type | dtf ink |
color | 5（C/M/Y/K/W) |
Ink supply method | Positive pressure continuous ink supply |
Capacity | 1500ml |
Configure | |
Delivery system | Standard |
Heating system | Front and rear platform heating |
drying system | Independently controlled cooling fan |
Medium | |
Print width | 700mm |
print media | pet printing film |
Maximum roll weight | 40Kg |
Operation | |
operating language | Chinese / English |
operating system | WindowsXP/Win7/win10 |
Operating environment | Best environment: 18-25℃, humidity 35%-65%RH |
print interface | USB |
printing software | Maintop/photoprint |
Other parameters | |
Power supply | AC-220V-110V,50Hz/60Hz |
Power | Standby power 32W, maximum power 300W |
Box size | 1.3*1*1.2m（L*W*H） |
Machine weight | 150kg |
Disen Company's record in South Africa Exhibition
Disen Company's record in Dubai Exhibition
Disen Company's record in Nigeria Exhibition
Disen Company's record in Saudi Arabia Exhibition
The main application scenarios of DTF printers
Customized clothing: Personalized pattern printing for T-shirts, sweatshirts, hats, sportswear, etc.
Bag and accessories: Creative designs for textiles such as backpacks, canvas shoes, scarves, etc.
Cultural and gift items: Customized peripheral products (such as fabric posters, throw pillows, canvas bags).
Industrial field: Functional prints for work uniforms, safety warning patterns, etc.
Which fabrics can DTF Film be used on?
The fabrics printed by the DTF printer are very diverse, covering almost the entire clothing industry. It can be used for various materials such as cotton, linen, polyester, nylon, and blends, and is especially suitable for dark or rough fabrics that are difficult to print directly. It is securely pasted and can be washed multiple times. The pattern will not crack. Choosing high-quality printing film can help keep the pattern on the clothes for a longer time.
How do we ensure quality?

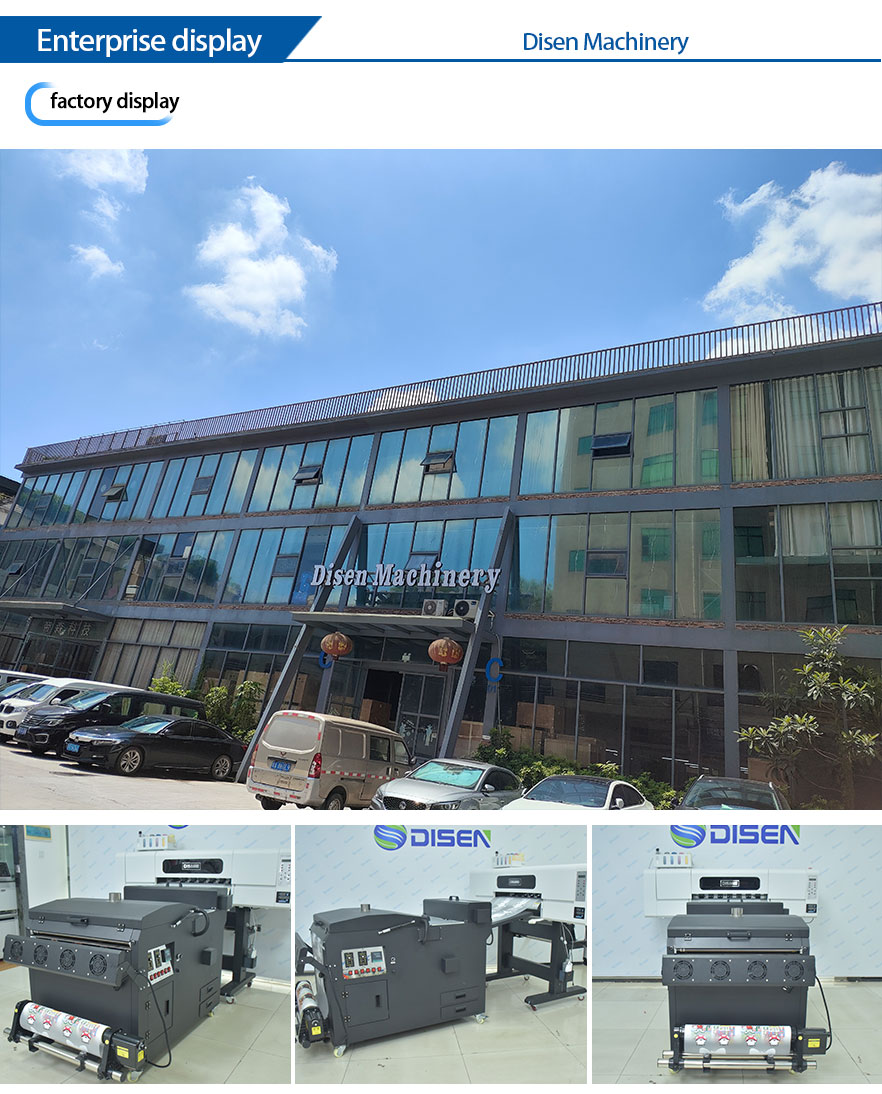

We are a factory with over 30 years of production experience. The company has an excellent technical team and production team. Our products undergo multiple inspections during the production process. Only after passing the inspections will they be confirmed as qualified. Before shipment, we will conduct a trial run on the machines to ensure that the products we send out are qualified.
