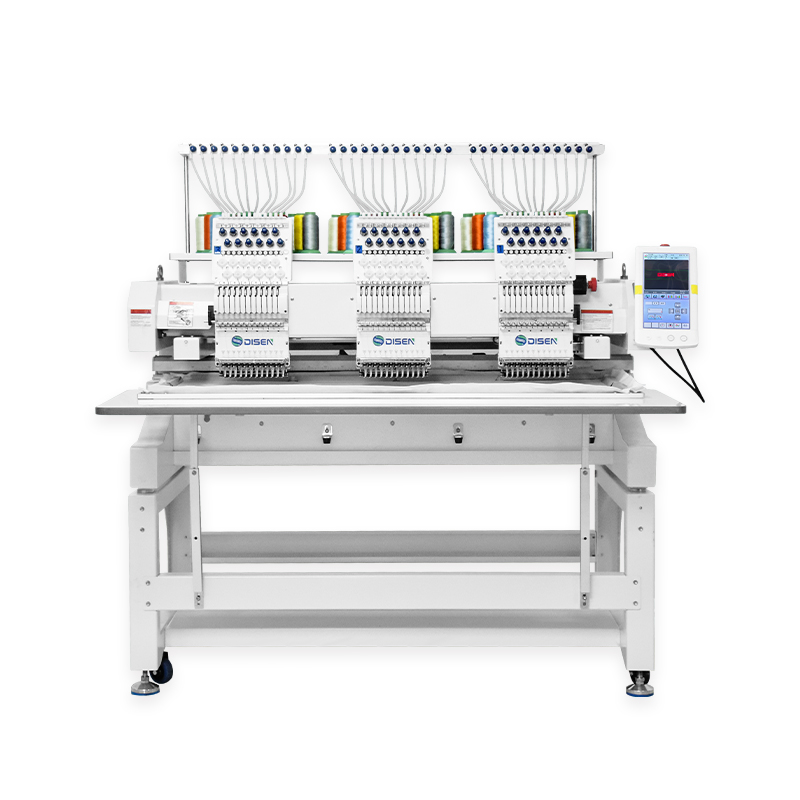

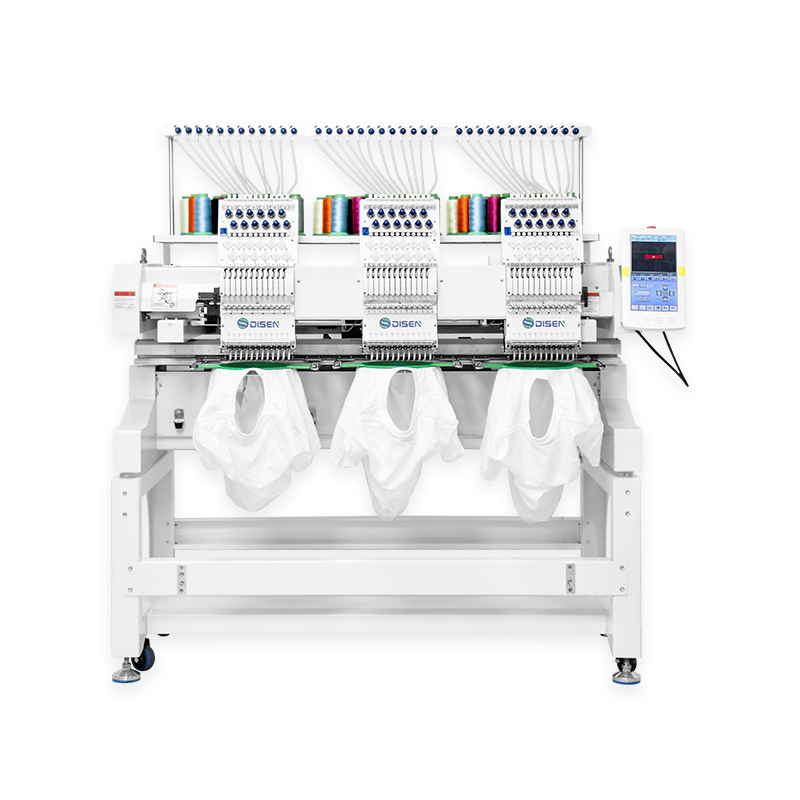

DS-J1203
DISEN

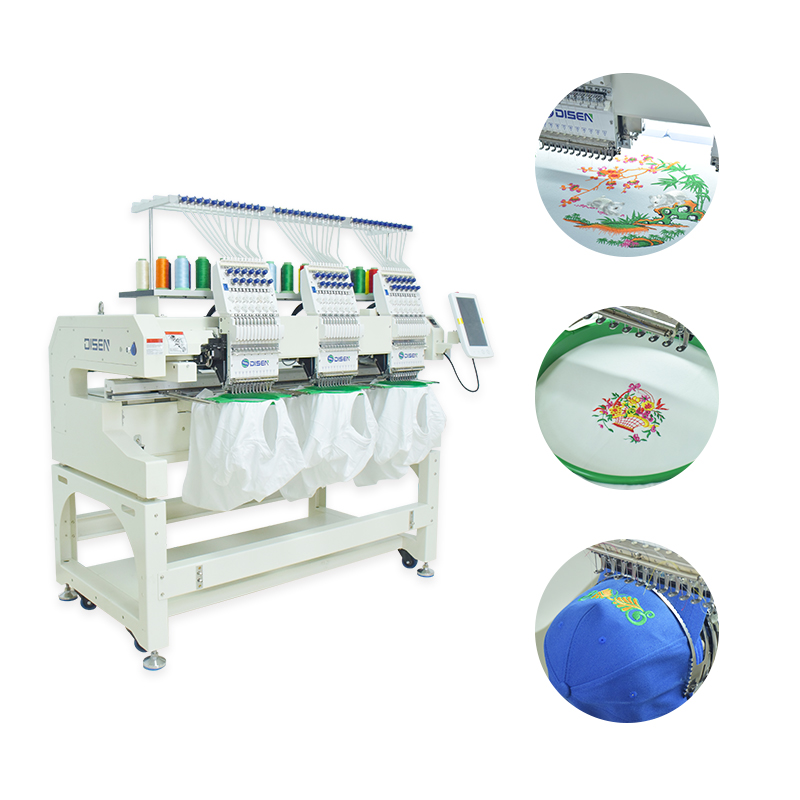

Multifunctional computerized embroidery machine, capable of achieving embroidery on various daily products such as hats, T-shirts, sweatshirts, sweaters, socks, shoes, large-sized fabrics, towels, etc. in one operation. Automatically complete embroidery, without the need for manual thread changing.

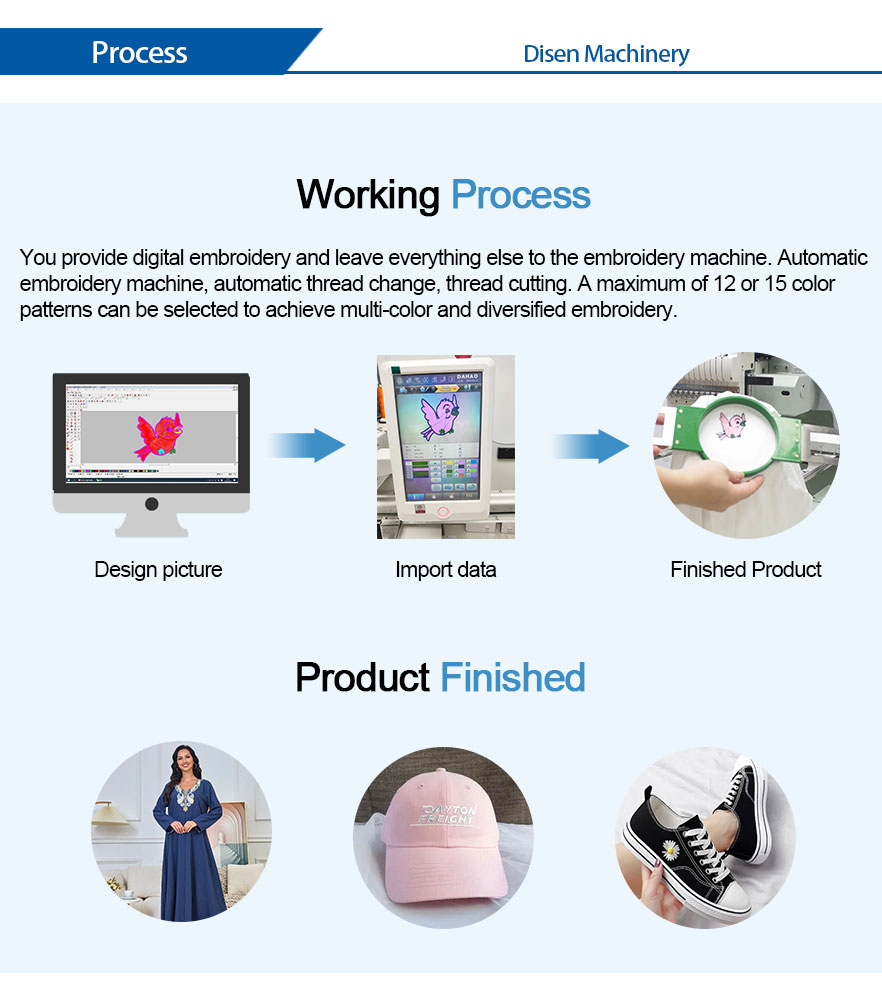

The computerized embroidery machine can directly embroider the patterns imported. Depending on different devices, it can be used to embroider hats, shoes and clothes. Automatic wire cutting, automatic wire changing. Reduce manual operations.

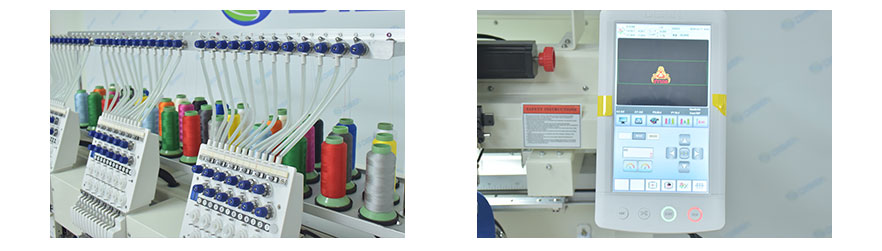

The machine is equipped with the Topwisdom control system. During the embroidery process, the speed can be adjusted, the embroidery range can be controlled, and the color of the embroidery can be selected. The machine is available in 18 languages, making it convenient for people from more countries to use.

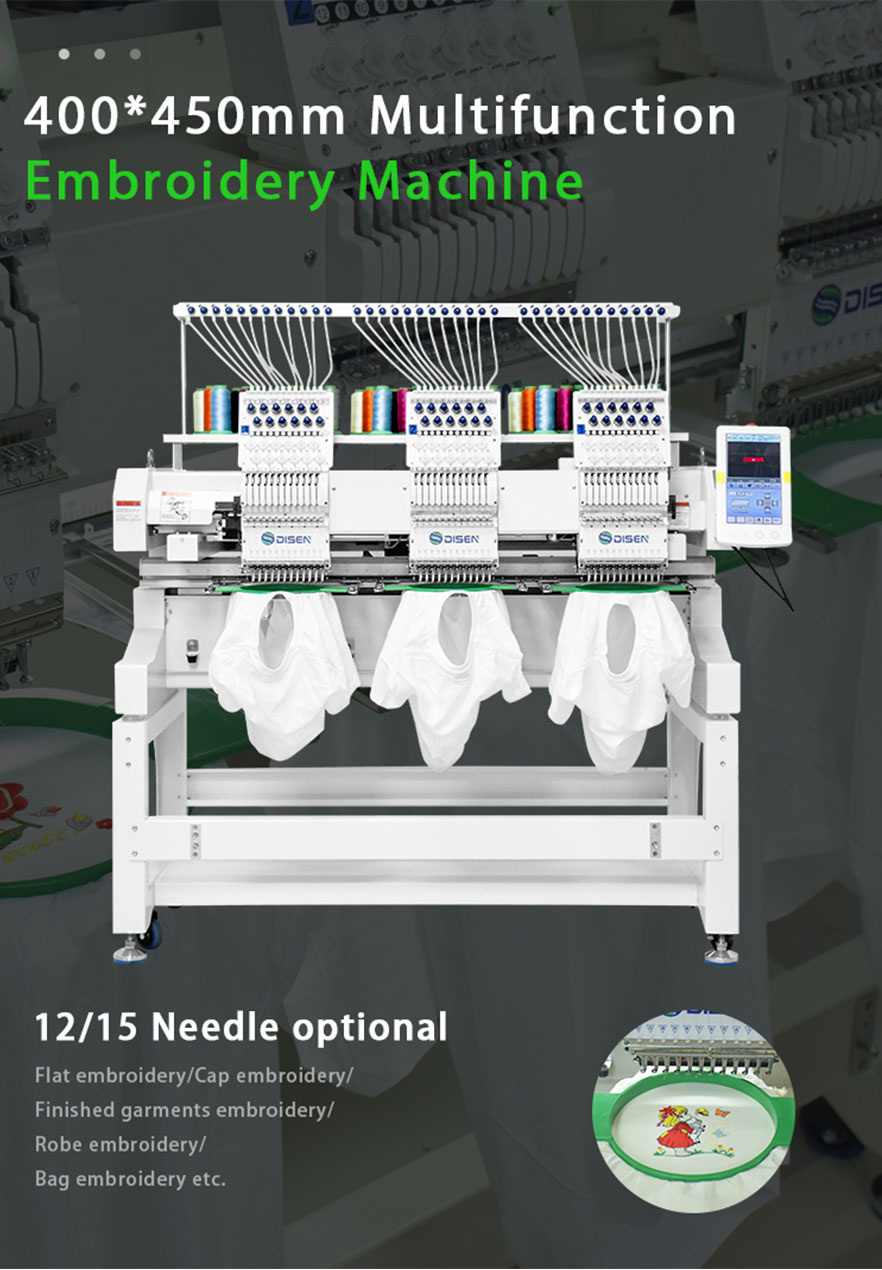

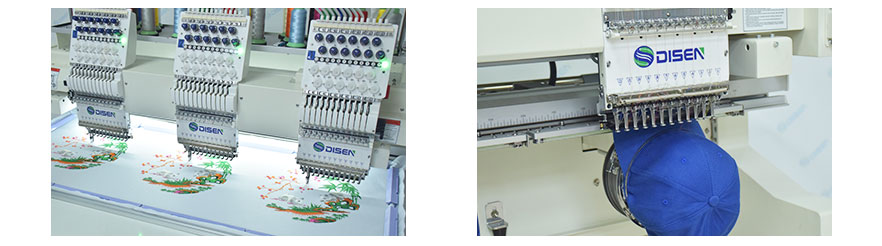

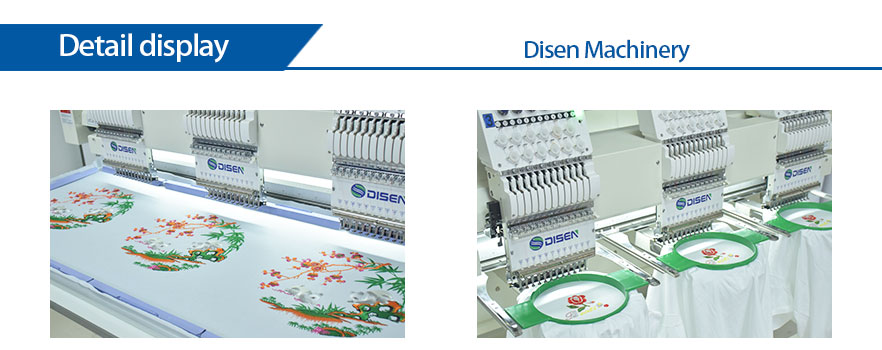

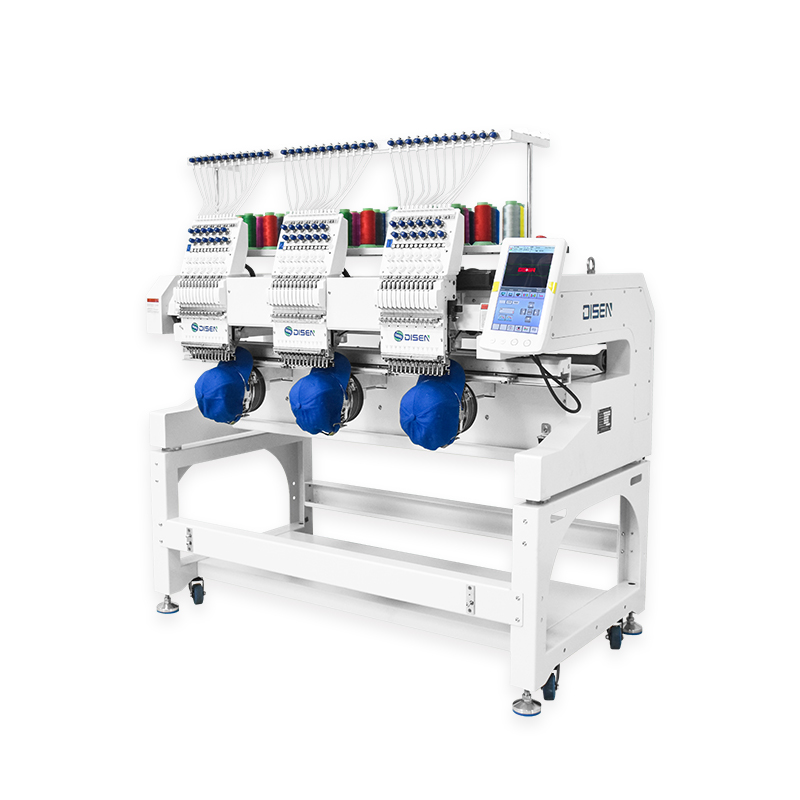

When using the embroidery machine for plain embroidery, a single head can achieve an embroidery area of 400*450mm. During hat embroidery, it can rotate up to 180 degrees. Automatically complete embroidery, and multiple heads can enhance your production efficiency.
Product name | DS-1203 Embroidery Machine |
Head | 3 Heads |
Needle | 12/15 |
Embroidery area | 400*450mm |
Controller | Topwisdom |
Packing Size | 1750*1030*870mm |
Net Weight | 435KG |
Gross Weight | 520KG |
Program device | With USB interface |
Pattern format | DST、DSB |
The running speed | 100-1200rpm |
Electricity | 110V/60Hz 0r 220V/50Hz |
Memory size | 500 Patterns,200 Million stitches |
Machine Size | 1520*1220*1630mm |
Warranty period | 1 year |
Language | 18 kinds |

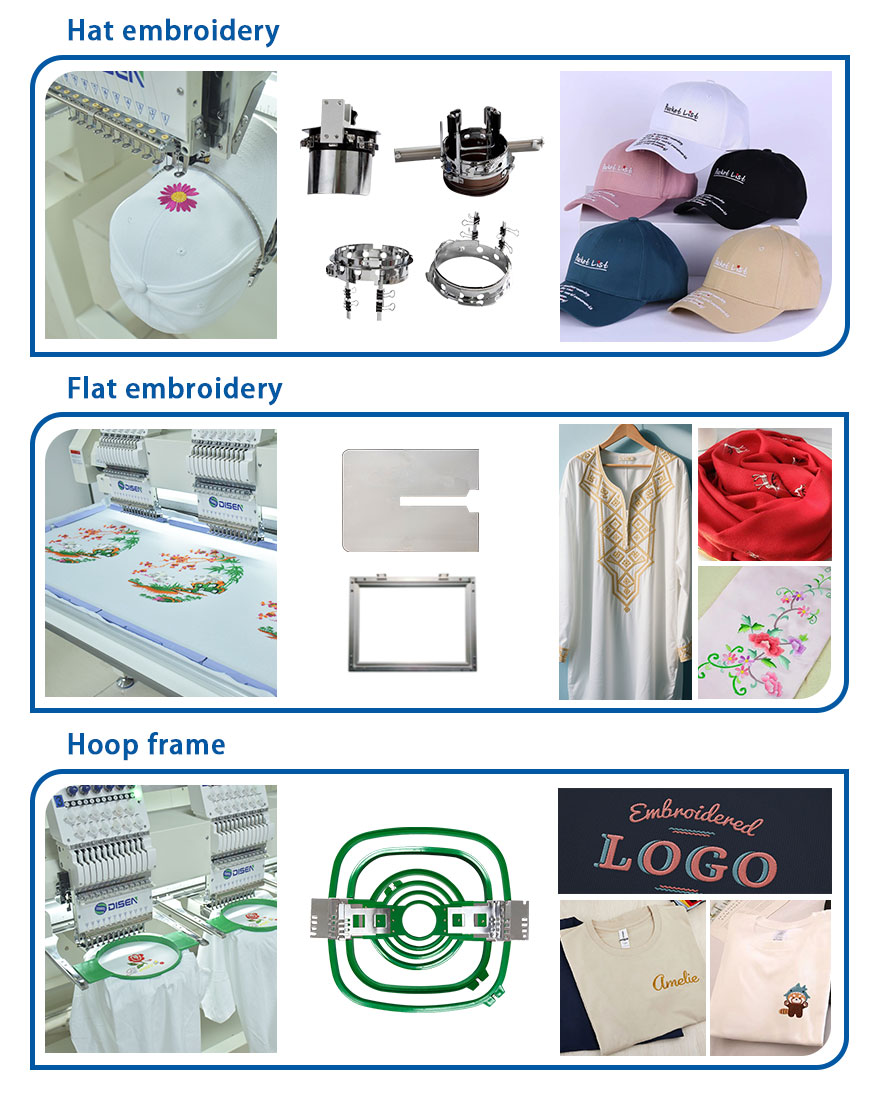

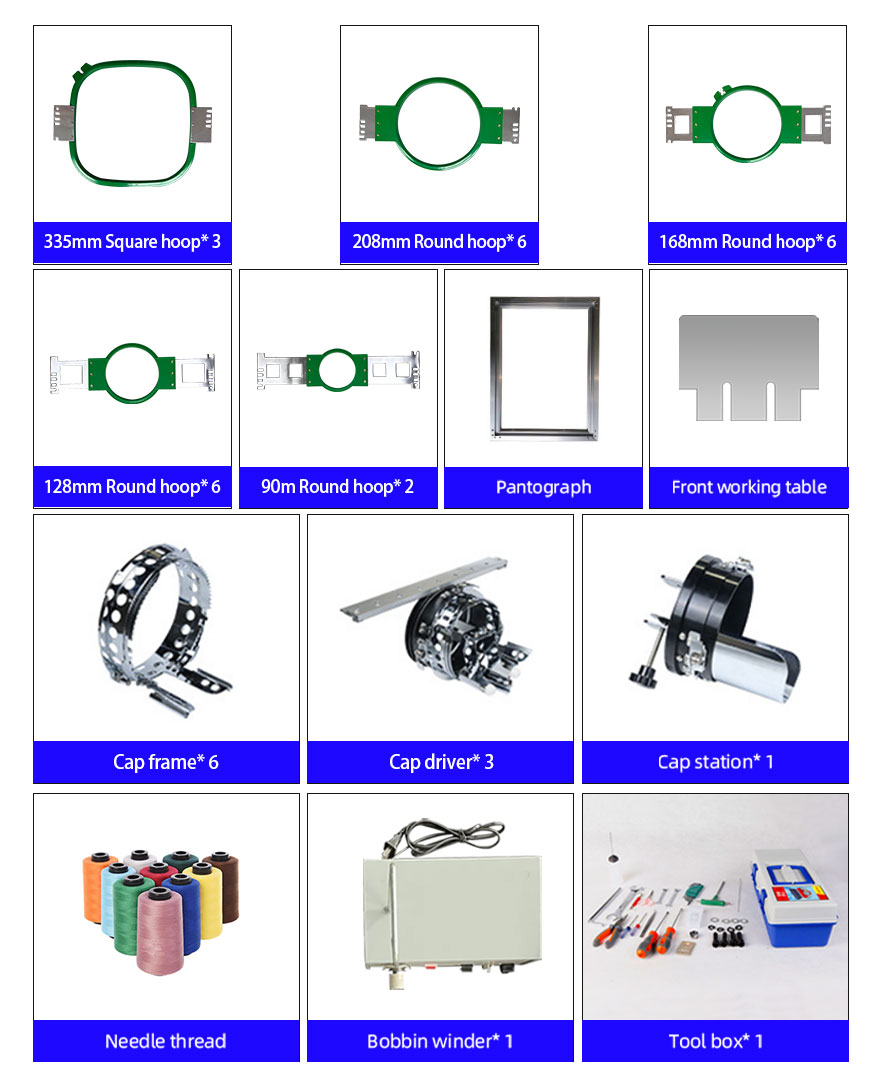

Garment frame | Square hoop(3pc)335mm Square hoop(6pc)295mm Round hoop(6pcs)208mm Round hoop(6pcs)168mm Round hoop(6pcs)128mm Round hoop(6pcs)90mm |
Hat embroidery device | Cap frame(6pcs) Cap driver(3set) Cap station(1set) |
1. Suitable for flat embroidery, cap embroidery and finished garments embroidery, T-shirt embroidery, logo embroidery etc.
2. High speed specialized cap embroidery heads,with double cam,double lever, by motorized jump.
3. Automatic thread trimmer
4. 260 degree Wide cap frame unit
5. Automatic color change and thread break detection
6. Start, Stop and emergency Stop Button
7. Design Tracing Available
8. One-Step Tracing
9. 10'' touch screen display control pannel, showing real time stitching
10. Computer Reads Multiple Design Formats.Such As DST.DSB And More.
11. USB port
12. Networkable And Wi-Fi capable
13. Control system can be updated easily
14. Multi-languages:Chinese, English, Spanish, Turkish, Russian,French, Portuguese, Arabic,Thai, Italian,German, Dutch,Polish
15. Equip With Laser Positioning(Unit price 15 $ )
16. Woodencase Packing.

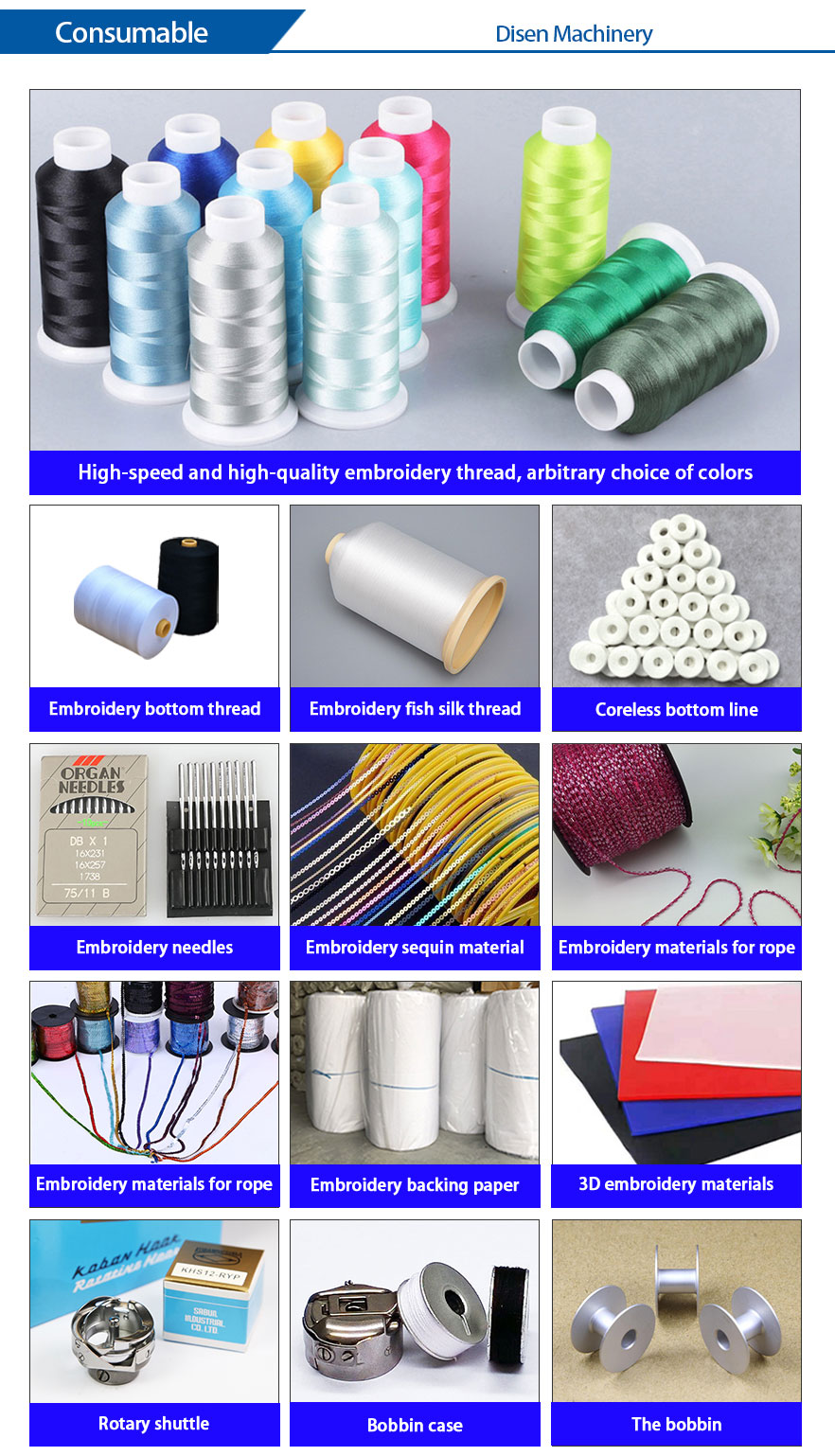

For each embroidery machine, we will be equipped with devices for hat embroidery, T-shirt embroidery and plain embroidery. Equip according to the number of heads. Machine-related consumables and tools.

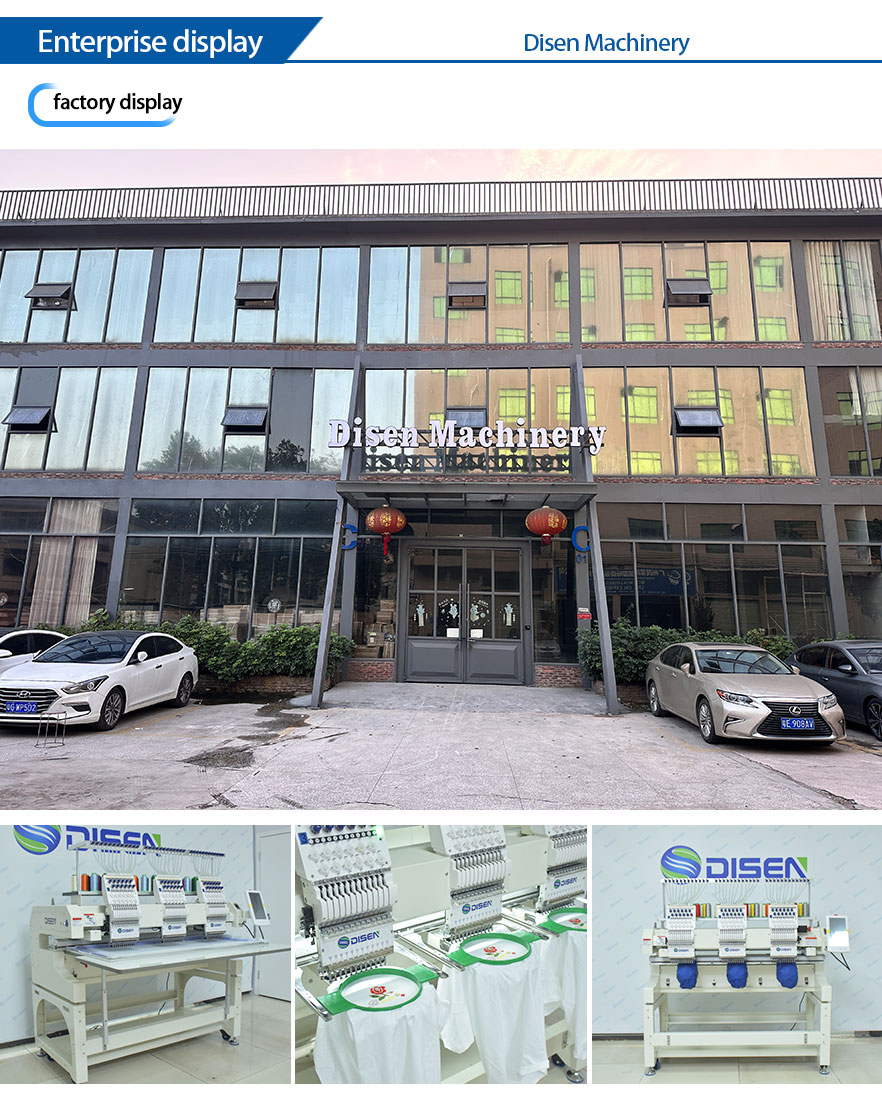

We are a professional manufacturer of clothing equipment. We attach great importance to the quality of our products and the shopping experience of our customers. We provide one-on-one after-sales service for customers who purchase our products. We provide teaching guidance and post-sales issue maintenance through online means. If you are in China at the moment, you can also come to our factory to learn.
We provide after-sales service in three ways
1. Through online contact, WhatsApp, WeChat, e-mail and other means of communication, technicians to provide you with one-to-one after-sales help.
2. Face-to-face on-site teaching, you can come to our factory to visit and learn.
3. Door-to-door service, you pay the door-to-door service fee, technicians will arrive in your country for your machine after-sales maintenance.
1.Cleaning
Wipe the machine surface daily to remove lint and dust. Clean the needle, needle plate, hook and shuttle regularly with a small brush to clear thread scraps and oil dirt. Keep guide rails and sliding blocks clean and unobstructed.
2.Lubrication
Add special lubricating oil to moving parts like needle bar, shuttle race, guide rails and sliding blocks on a regular basis. Use proper amount of oil and only dedicated oil for the machine.
3.Mechanical Inspection
Check and tighten loose screws regularly. Inspect belts, gears and transmission parts for wear or looseness, adjust or replace damaged parts in time.
4.Electrical Maintenance
Check wires and connectors regularly for aging or damage. Keep electric parts dry, dust-proof and away from moisture to avoid short circuit.
5.Daily Use Tips
Power off before any maintenance. Back up embroidery pattern data regularly. Stop the machine in time once abnormal noise or operation occurs.
