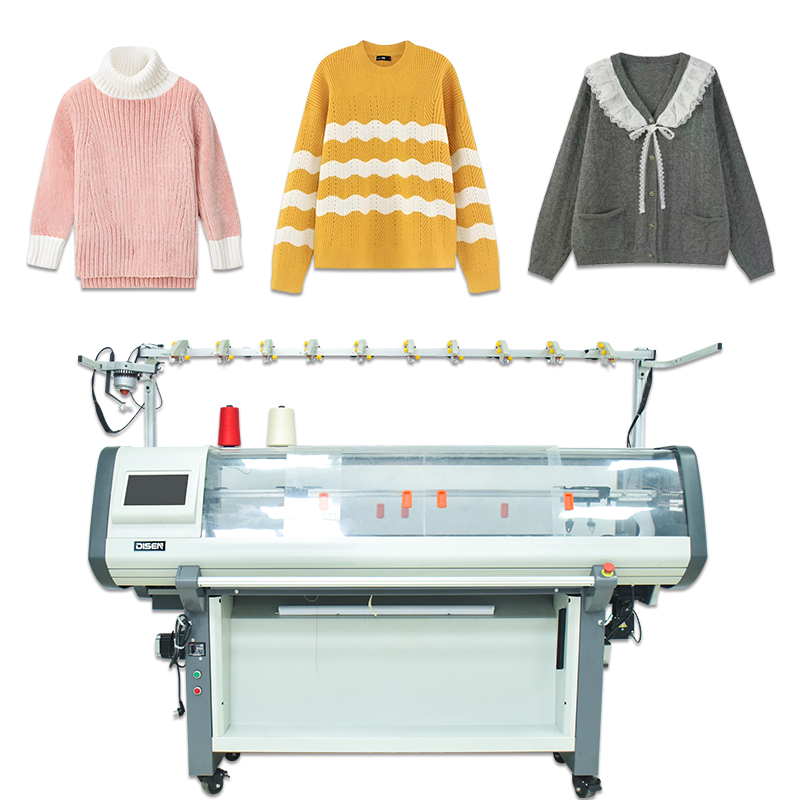

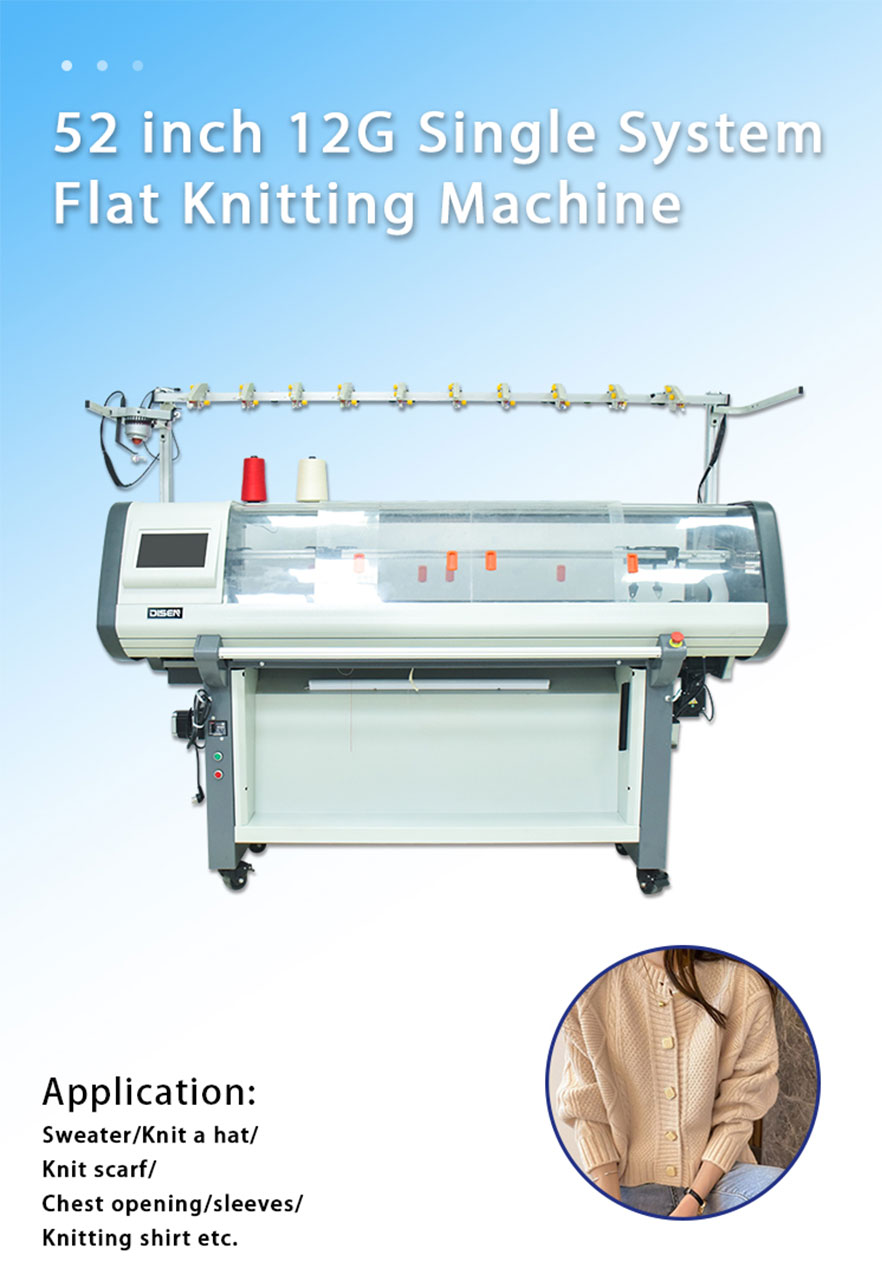

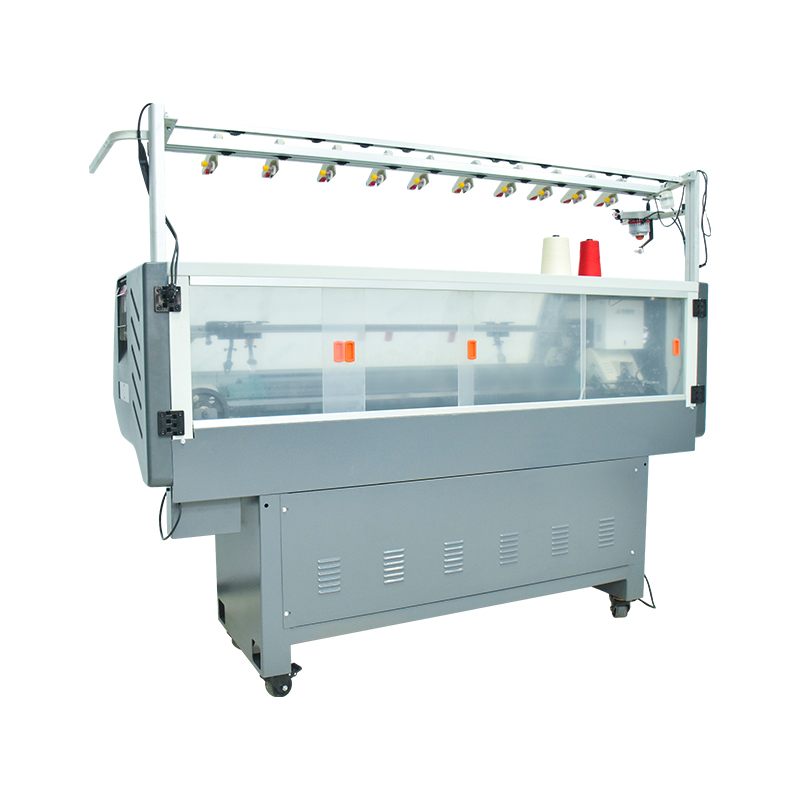

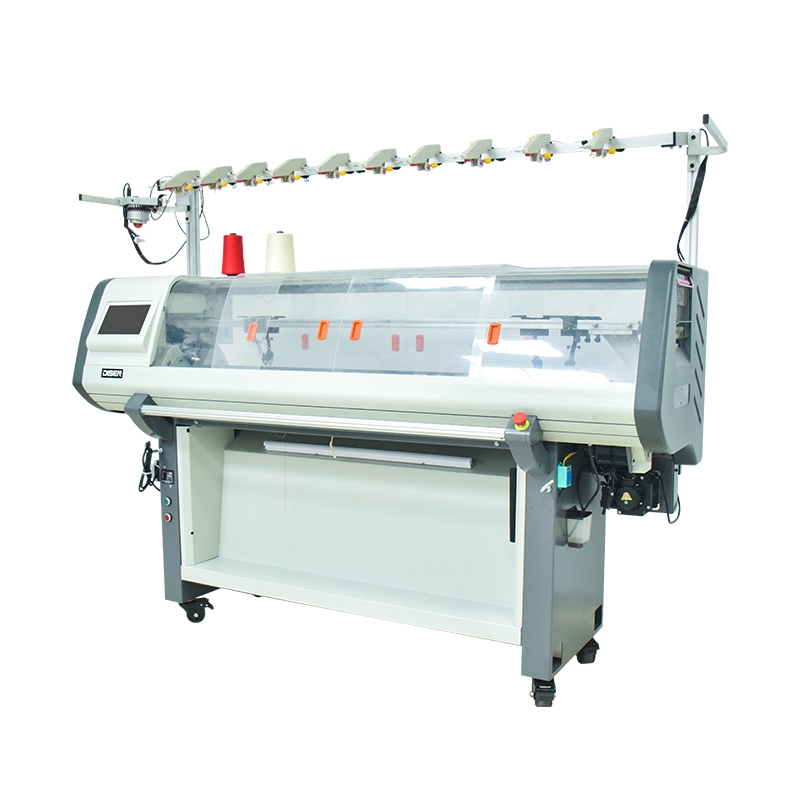

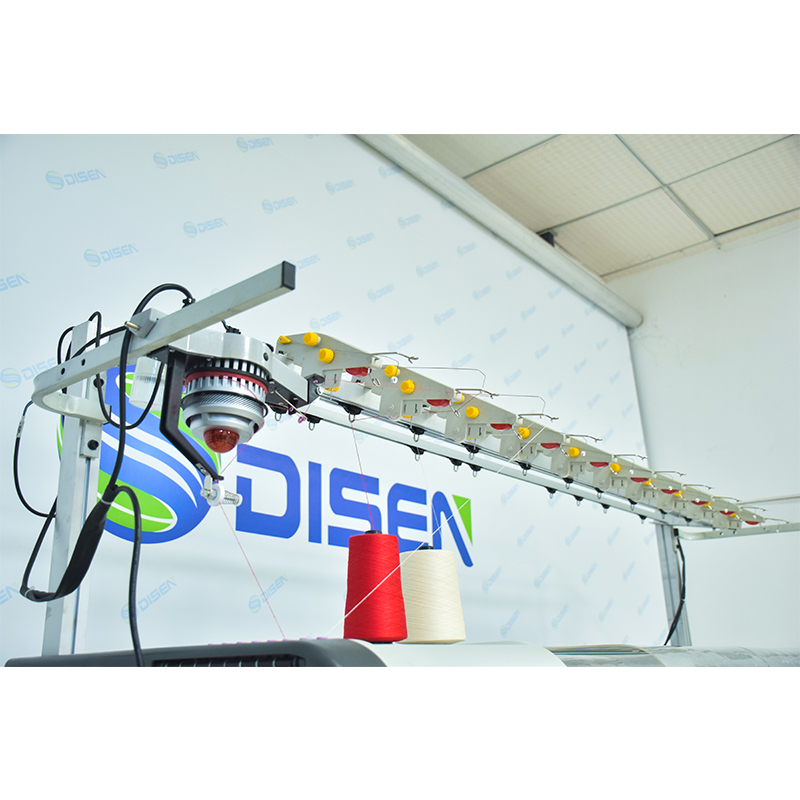

DS-1-52 knitting machine
DISEN
The computerized knitting machine allows you to choose different needle counts and sizes. The effect of the knitted sweaters is also different. You can knit simple sweaters, including the neckline, sleeves, and so on. Cowl, knitted hat.
Model | DS-1-52 knitting machine |
Gauge | 5G,6G,7G,8G,9G,10G,12G,13G,14G,15G,16G |
Knitting System | Single System,Single Carriage |
Knitting Width | 44 inches, 52 inches, 60 inches, 80 inches, 100 inches |
Knitting Speed | Max 1.2m/s |
Knitting Function | Tranfer tuck,miss,jacquard,intarsia, hide or apparent shaping |
Stitch Density | Stitch system controlled by stepping motor, 32 section stitch selectable, adjustable scope supported by subdivision technology; 0-650. |
Racking | Controlled by AC servo motor, racking within 2 inches and with fine adjusting function. |
Drive System | Synchronous belt drive, AC servo system. |
Needle Selection | Controlled by computer, electric magnet needle choose system with high efficiency |

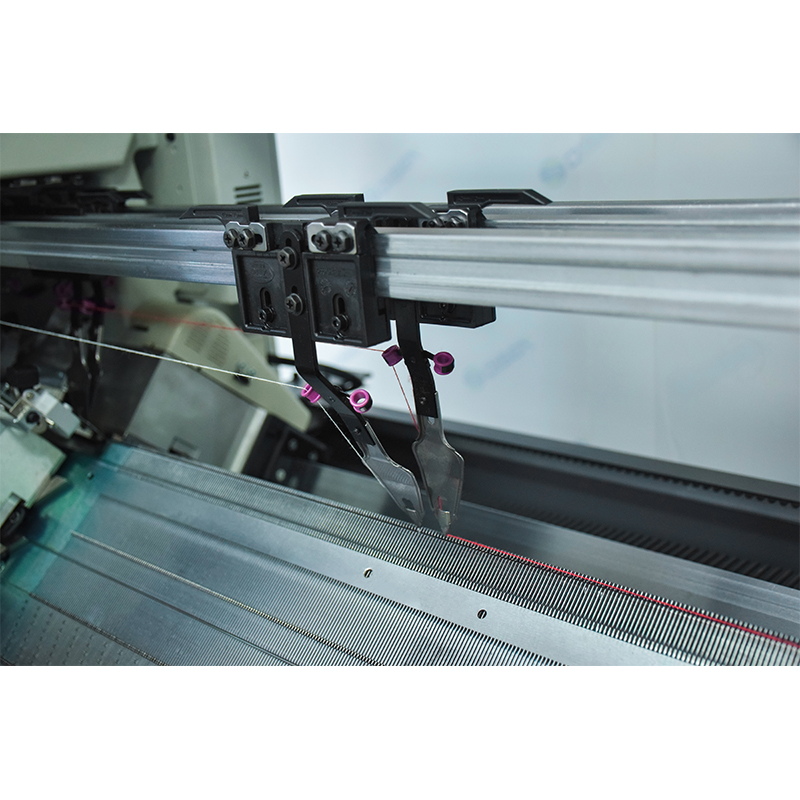

Yarn Carrier | 1x8 yarn carriers on each side of 4 guide rails, shiftable on any needle position. |
Take Down Roller | Programmed instruction controlled by stepping motor, 32 section levels selection adjustable area; 0-100 |
Protection System | The machine will automatically alarm if yarn breaking, float yarn, rewind,end of knitting, fail of racking, needle breakage and error programming occur etc. |
Control System | 1, Adopt LCD screen, input device; USB, system memory 256MB, a great amount of design files can be stored. 2,Monitoring menu, each kind of operating parameter, can be shown, and they can be adjusted at any time when the machine is running. 3, Design system is visual and easy to understand and up grad. 4, Multi language version,there are chinese, english etc. |
Power | 220v, single-phase, have memorizing function at the power-off moment. |
Package Size | 2.37*0.85*1.83m |
Net weight | 550kg |
Gross Weight | 650kg |
Disen Company's record in South Africa Exhibition
Disen Company's record in Dubai Exhibition
Disen Company's record in Nigeria Exhibition
Disen Company's record in Saudi Arabia Exhibition
What can Disen offer you?

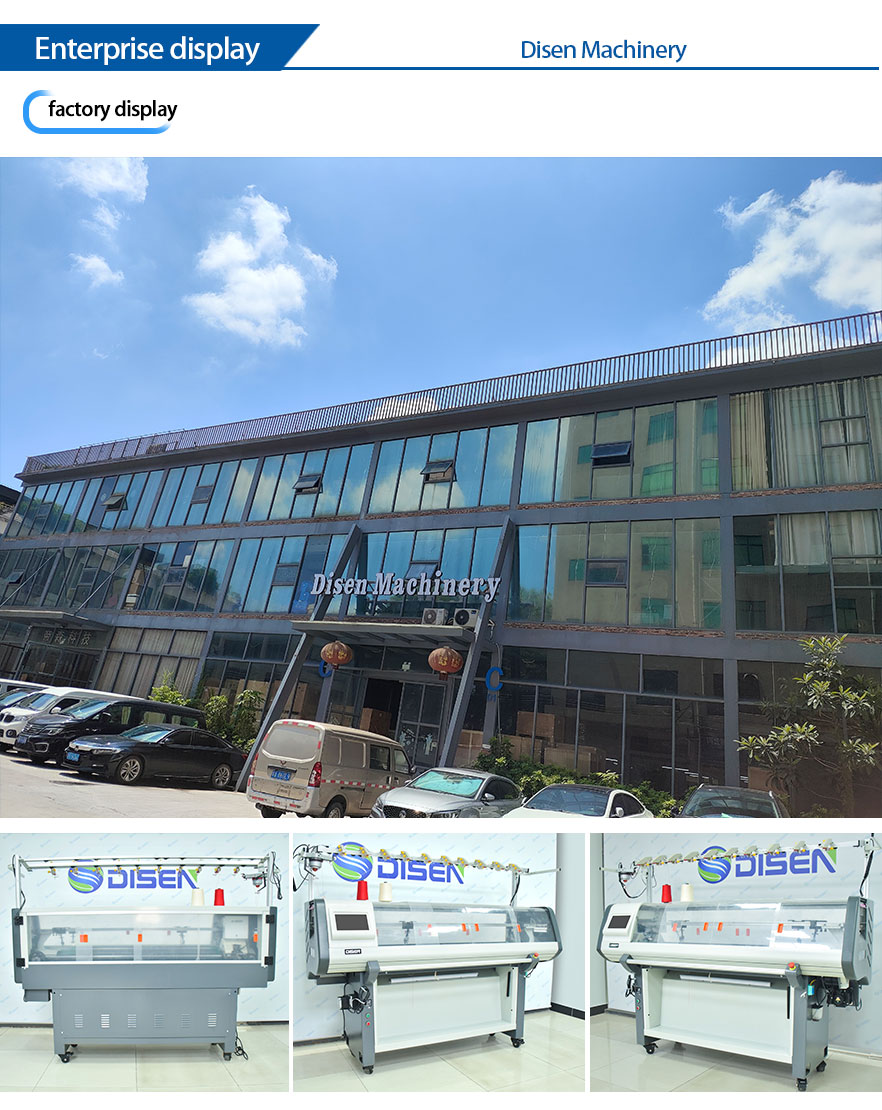

Disen is a diversified enterprise centered on the production of clothing equipment. We focus on the research and development as well as the manufacturing of products. The main products include DTF Printers, embroidery machines, looms, sock knitting machines, sublimation printers, sewing machines, and so on. We offer services such as OEM and ODM to our customers.
What is a knitting machine?
The sweater knitting machine is indeed an efficient equipment specifically designed for making sweaters. It differs from traditional knitting machines and crochet machines, as it can knit multiple needles simultaneously, significantly enhancing the production efficiency of sweaters. In terms of material selection, we recommend using wool yarn with good elasticity and a moderate thickness to ensure a smooth weaving process and the quality of the finished product. When operating the sweater knitting machine, you need to first wind the yarn onto the machine, then install the appropriate mold, and then you can start knitting and gradually complete the production of the sweater. This equipment not only has a fast knitting speed, which can significantly save time and manpower, but also has a regular and beautiful knitting effect, suitable for large-scale production. Of course, when using the sweater knitting machine, safety must also be noted. You need to maintain a high level of concentration, and at the same time, do a good job in the maintenance and cleaning of the machine to ensure its stable and long-term operation. In conclusion, the sweater knitting machine is a major innovation in the field of sweater production, providing strong support for improving production efficiency and product quality.
Why did you choose us?
Disen offers customers a one-stop service. Here, you can purchase the machines as well as the accessories, consumables and other necessary items required for the machines. We offer product solutions to our customers and can provide suitable machines according to their requirements.
